Machine vision
Optimizing Industrial Inspection &
Image Processing
In automated manufacturing and robotic vision, high contrast and ambient light rejection are critical for success.
Our Solution:
We provide high-performance bandpass filters that isolate specific wavelengths with extreme precision. We help you minimize noise, reduce cycle times, and ensure consistent inspection reliability.
Machine vision
| Filter type | Model | Angel of Incidence |
Design Target Wavelength |
Graph |
|---|---|---|---|---|

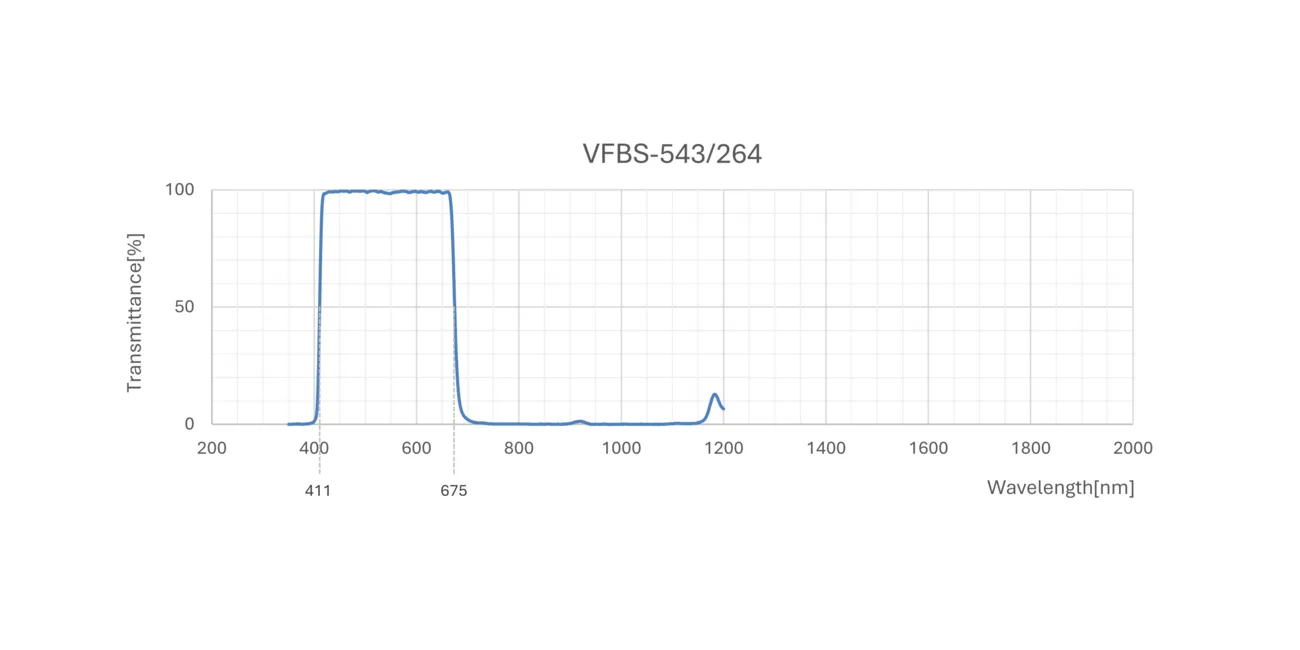

| IR cut filter | VFBS-543/264 | 0 | 360-1100 |
|
| IR cut filter | VFSP-550 | 0 | 550 |
|

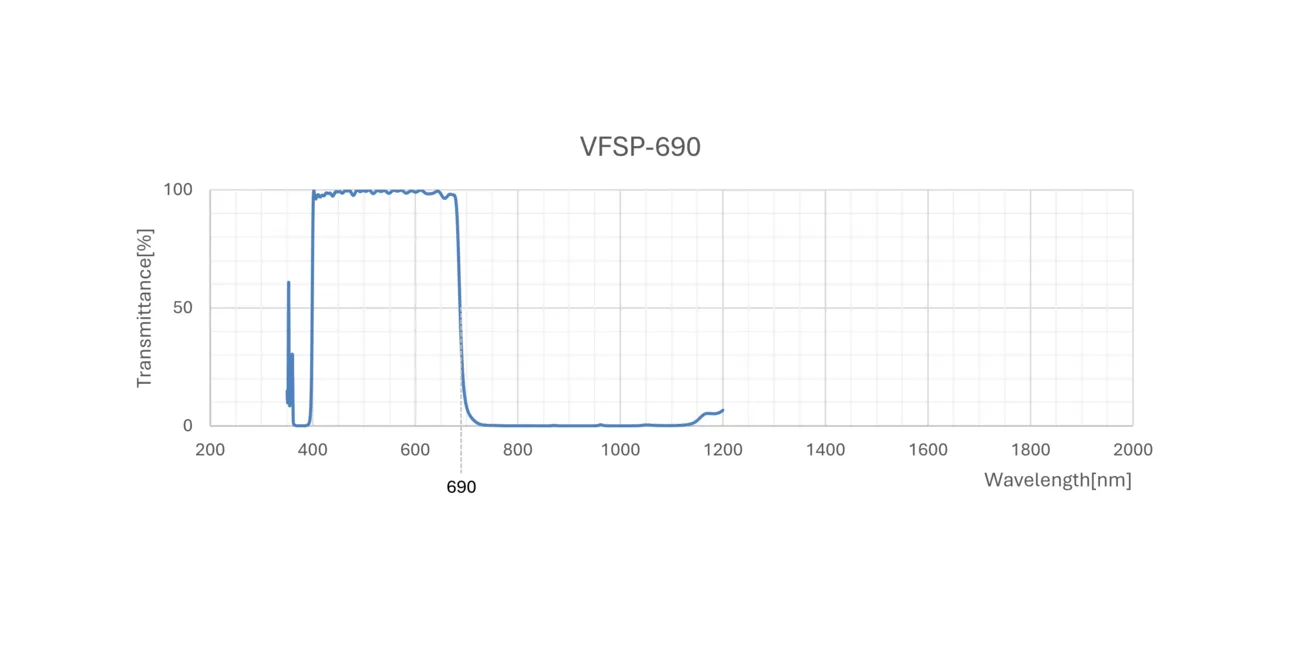

| IR cut filter | VFSP-690 | 0 | 690 |
|

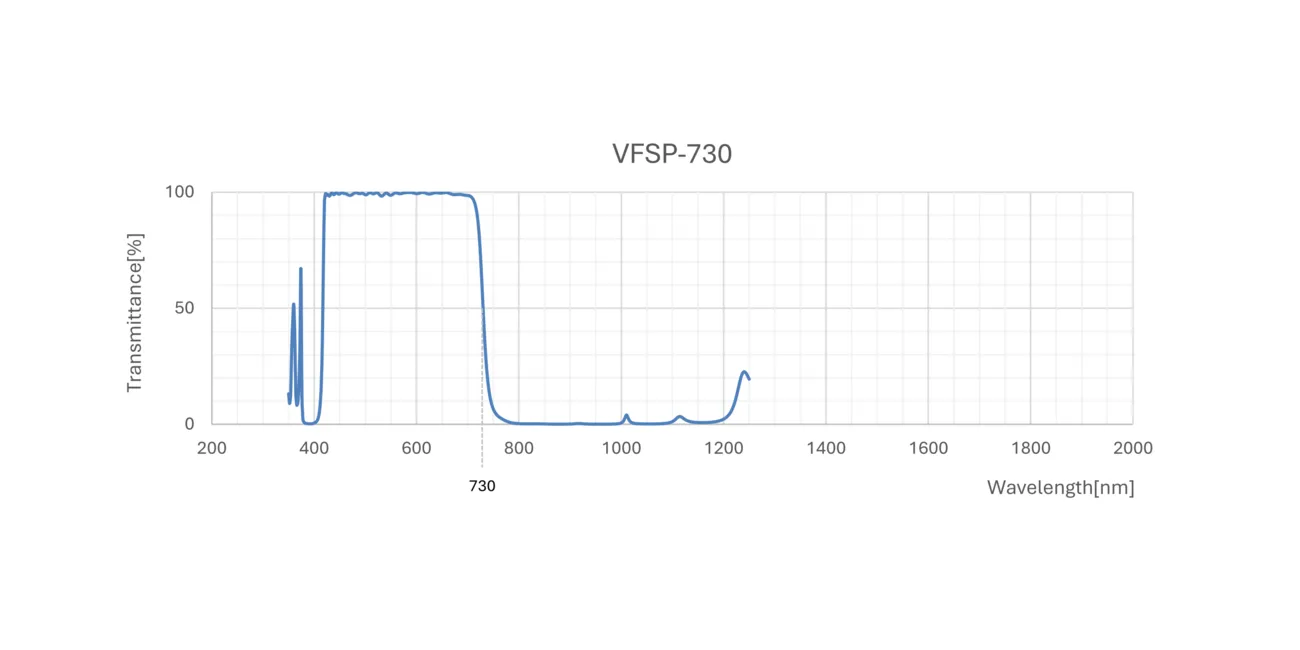

| IR cut filter | VFSP-730 | 0 | 730 |
|

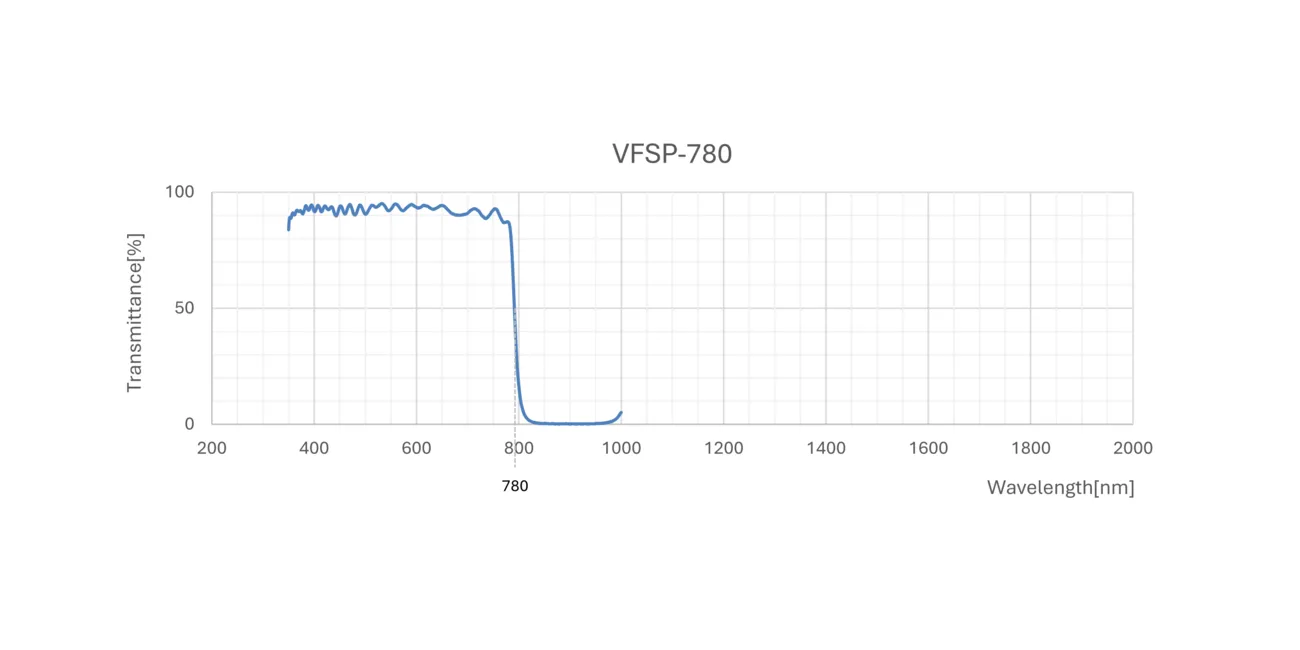

| IR cut filter | VFSP-780 | 0 | 780 |
|

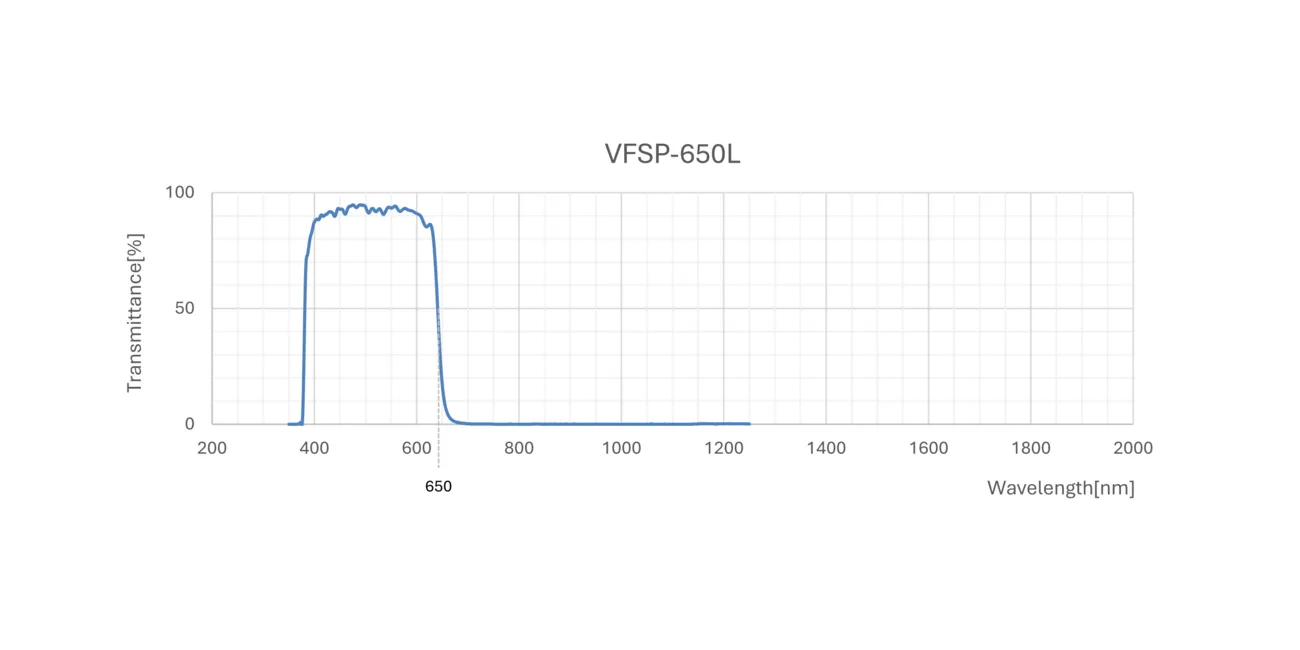

| IR cut filter | VFSP-650L | 0 | 650 |
|

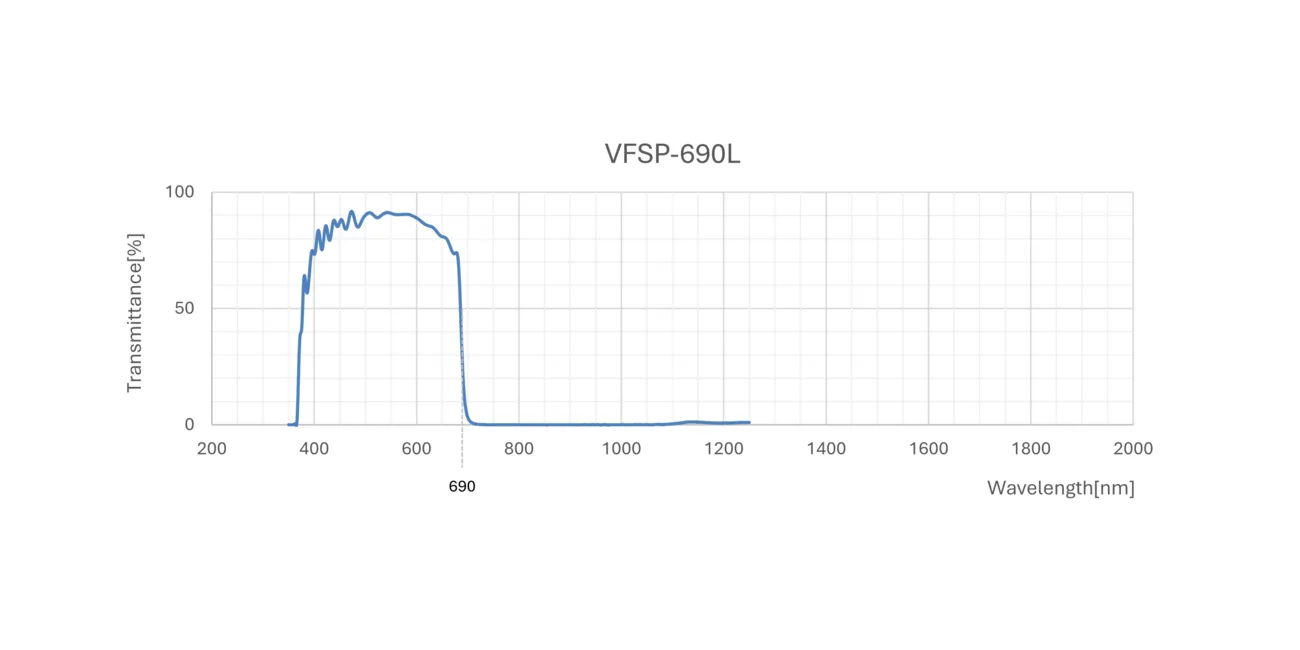

| IR cut filter | VFSP-690L | 0 | 690 |
|

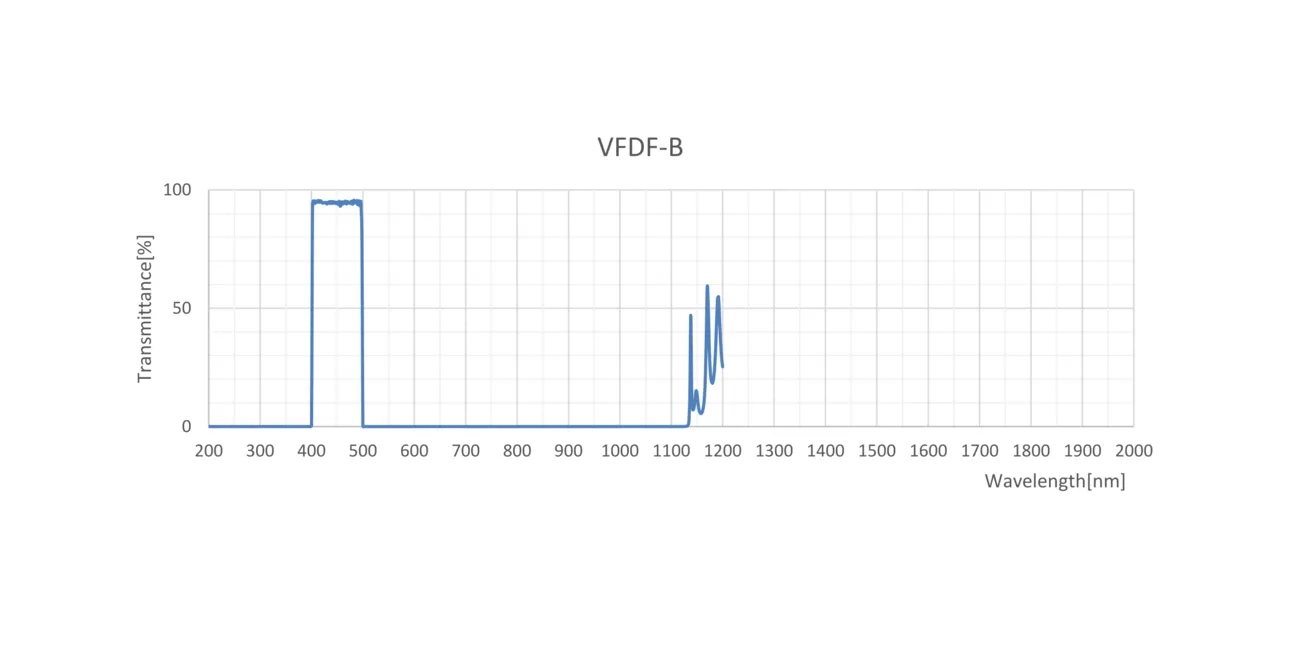

| Dichroic filter | VFDF-B | 0 | 400-1000 |
|
| Dichroic filter | VFDF-G | 0 | 400-1000 |
|
| Dichroic filter | VFDF-R | 0 | 400-1000 |
|
| Dichroic filter | VFDF-Y | 0 | 360-800 |
|
| Dichroic filter | VFDF-M | 0 | 360-800 |
|
| Dichroic filter | VFDF-C | 0 | 360-800 |
|

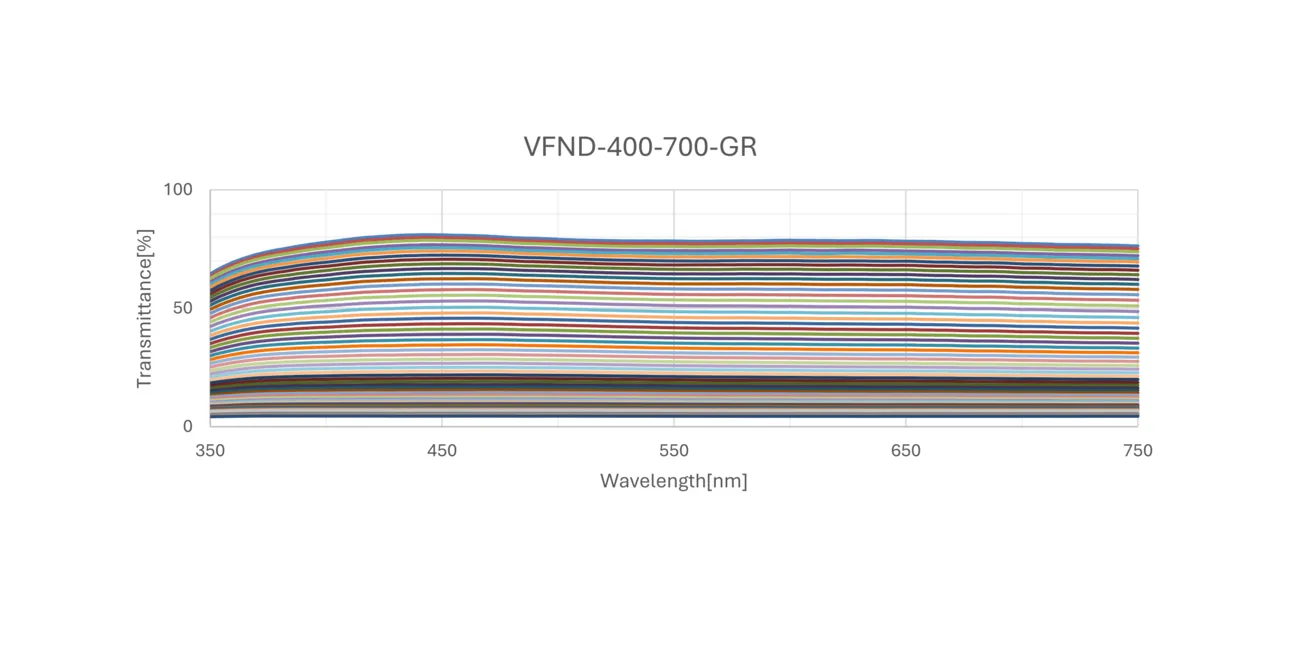

| ND filter | VFND-400-700-GR | 0 | 400-700 |
|

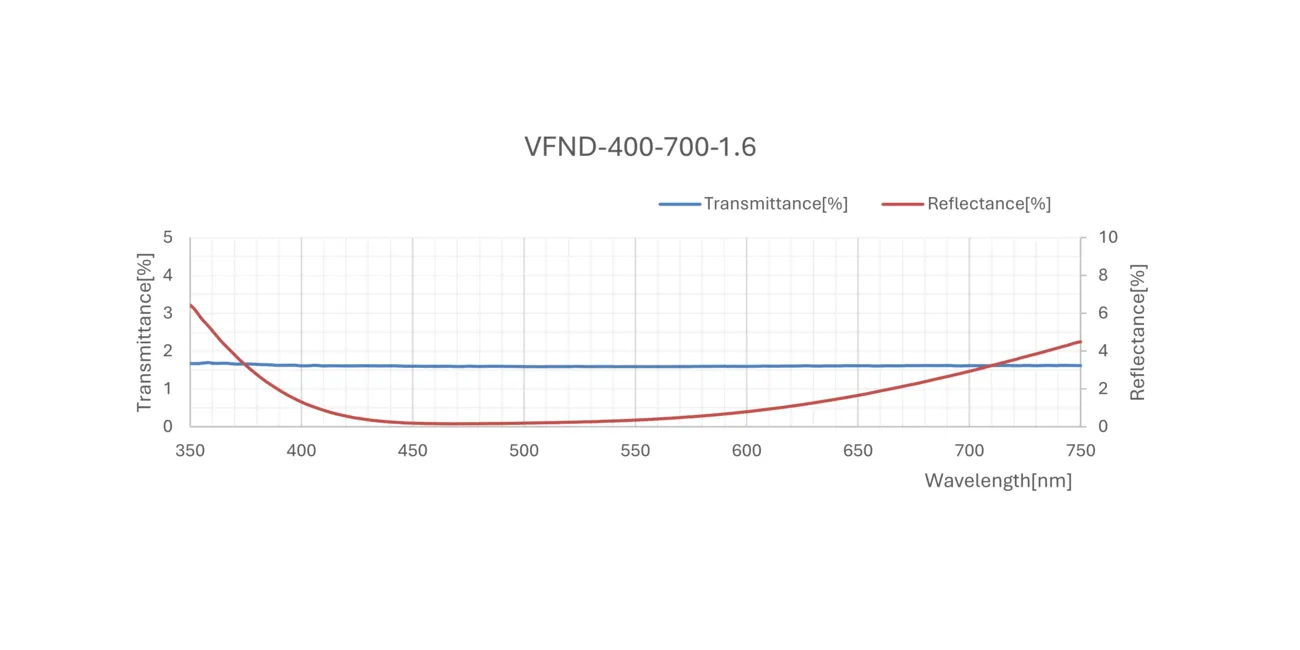

| ND filter | VFND-400-700-ND1.6 | 0 | 400-700 |
|

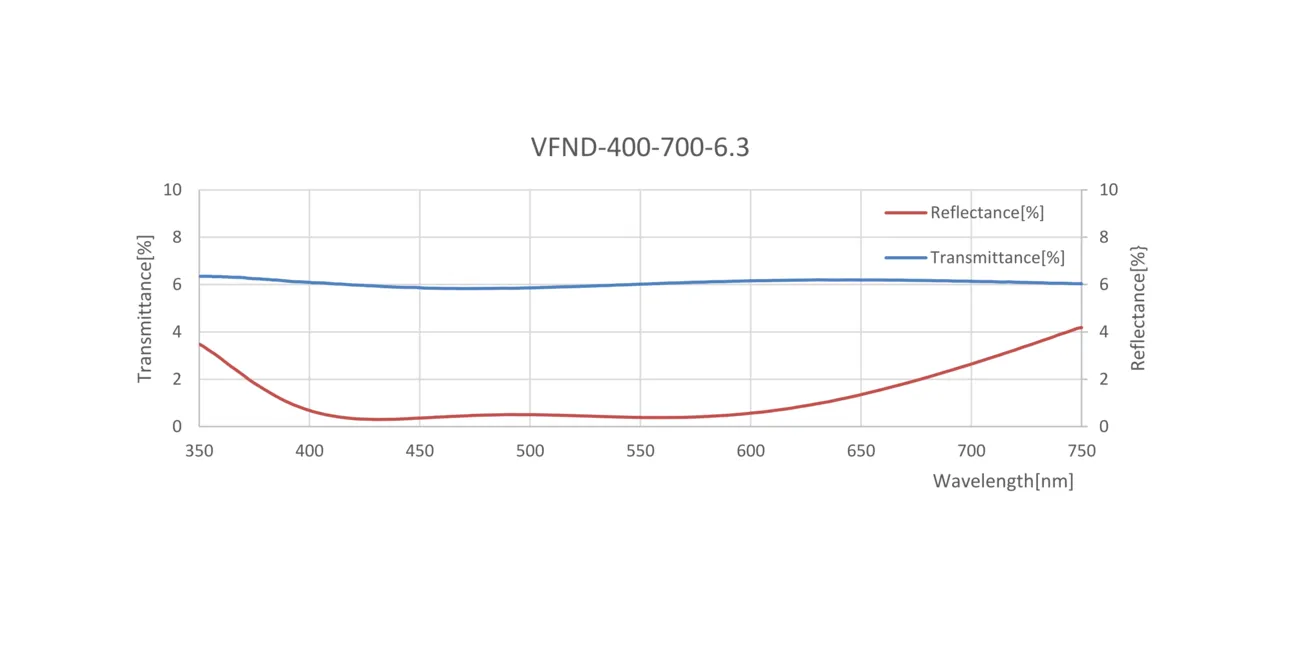

| ND filter | VFND-400-700-ND6.3 | 0 | 400-700 |
|

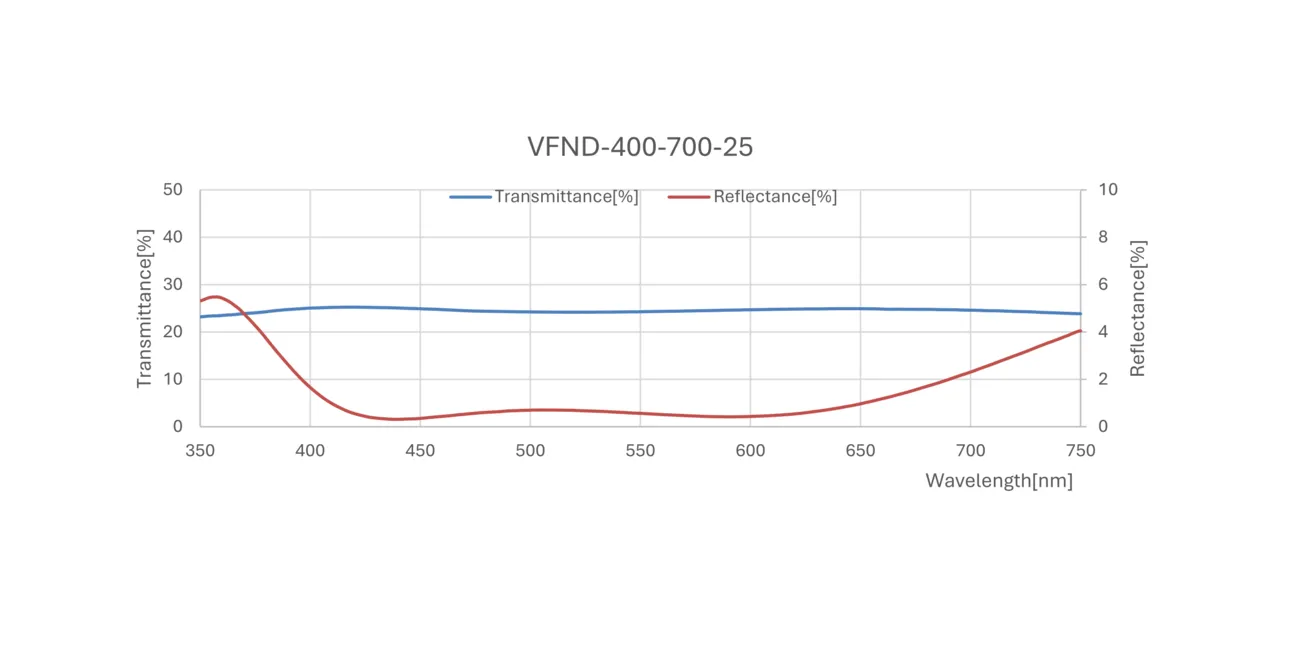

| ND filter | VFND-400-700-ND25 | 0 | 400-700 |
|

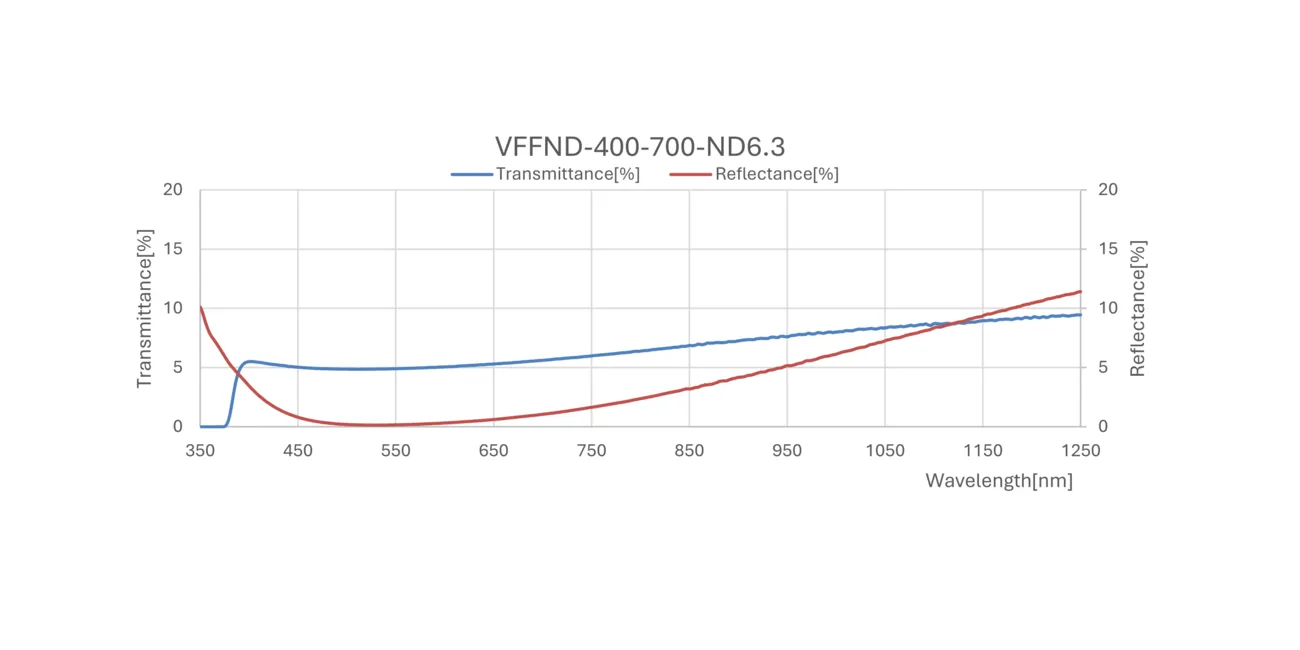

| ND filter | VFFND-400-700-ND6.3 | 0 | 400-700 |
|

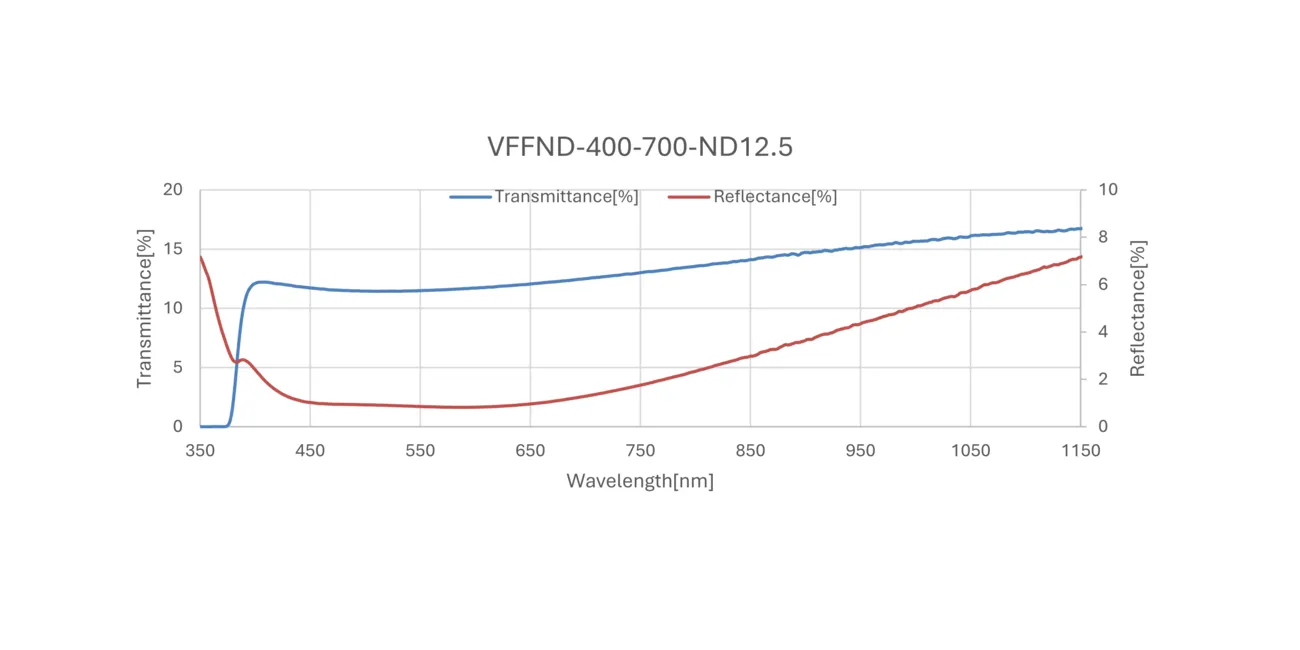

| ND filter | VFFND-400-700-ND12.5 | 0 | 400-700 |
|

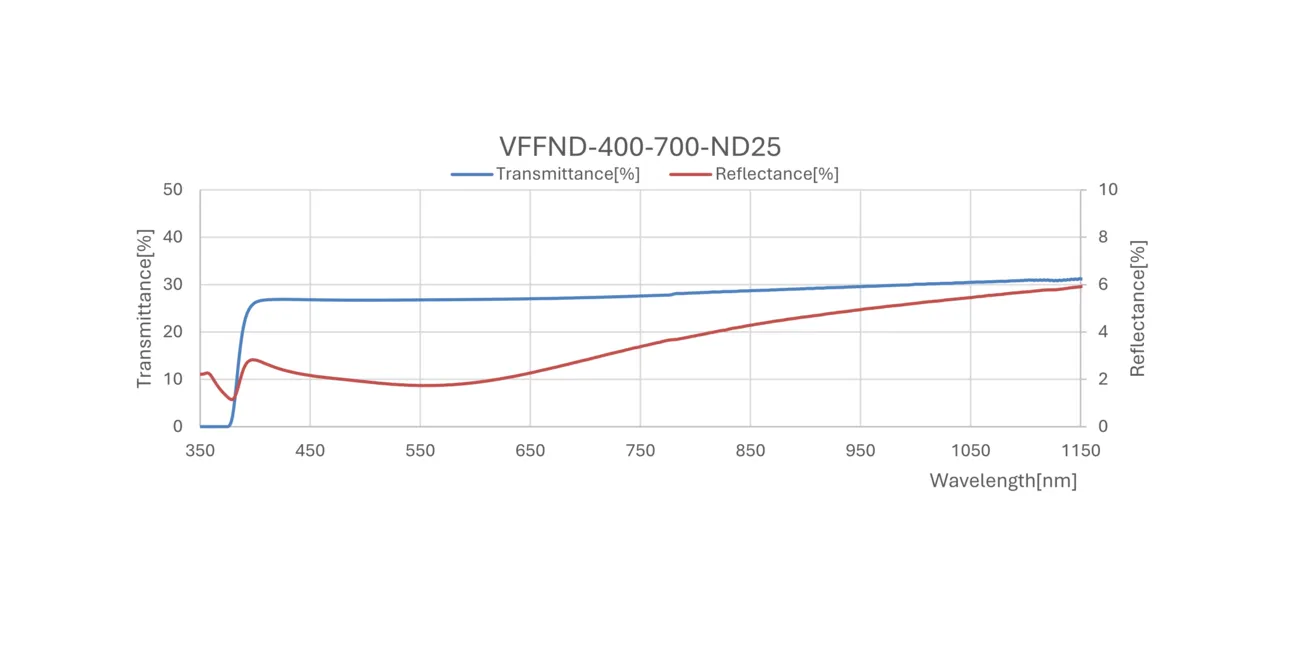

| ND filter | VFFND-400-700-ND25 | 0 | 400-700 |
|

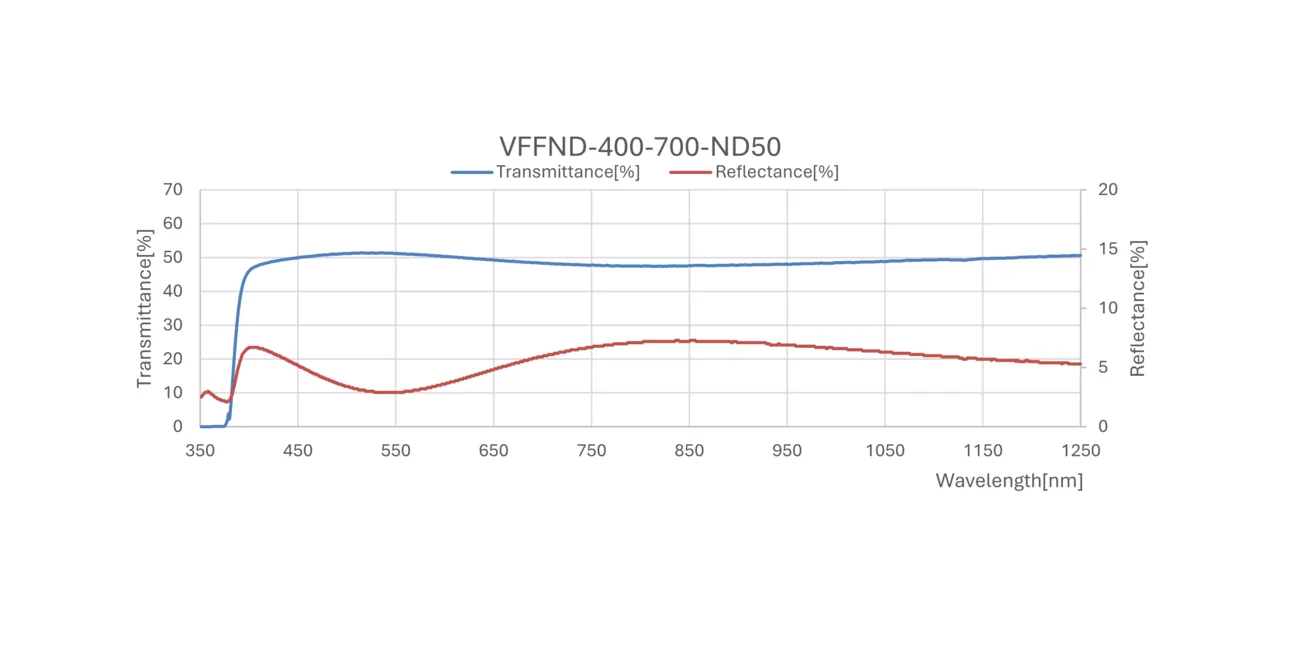

| ND filter | VFFND-400-700-ND50 | 0 | 400-700 |
|

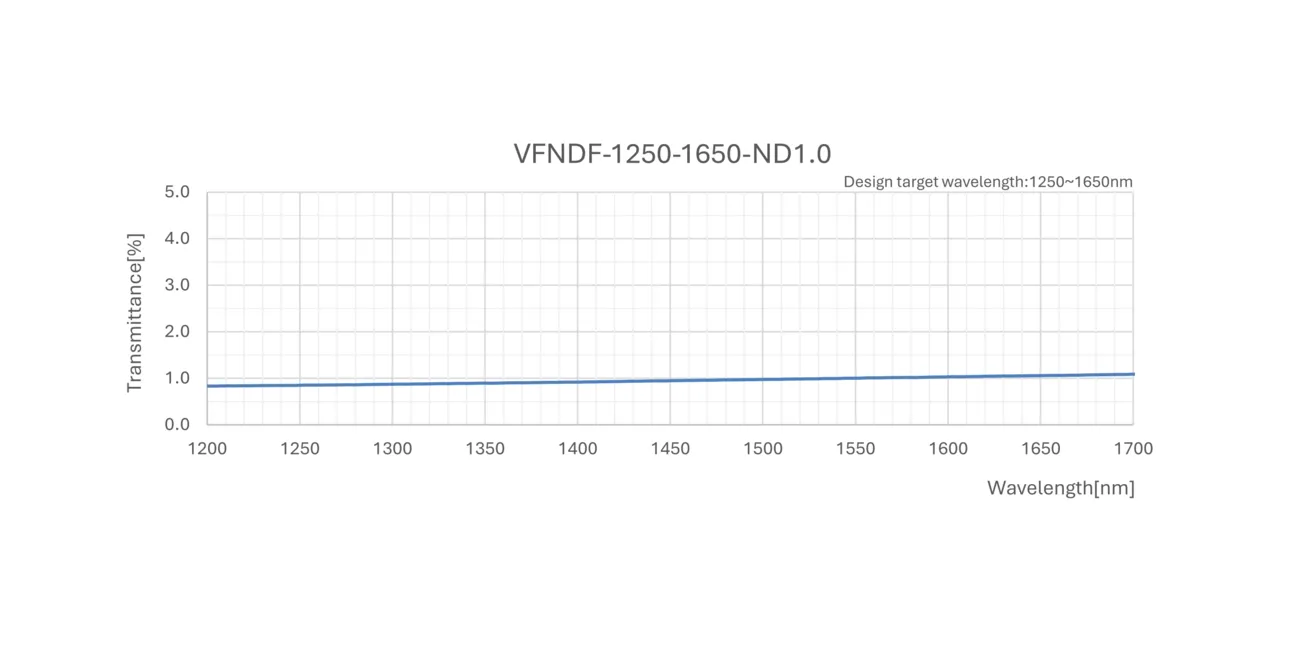

| ND filter | VFNDF-1250-1650-ND1.0 | 0 | 1250-1650 |
|
| Band pass filter | VFBS-255/8 | 0 | 255 |
|
| Band pass filter | VFBS-488/14 | 0 | 488 |
|
| Band pass filter | VFBS-525/32 | 0 | 525 |
|
| Band pass filter | VFBS-589.3/11 | 0 | 589.3 |
|

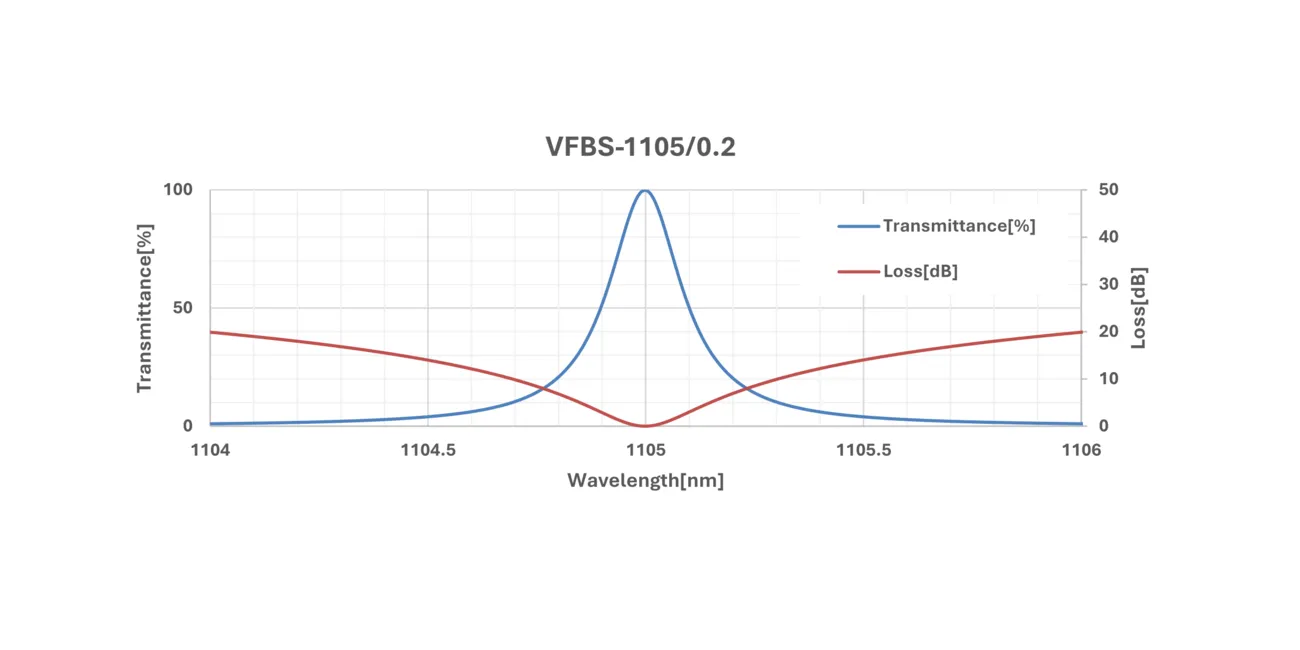

| Band pass filter | VFBS-1105/0.2 | 0 | 1105 |
|

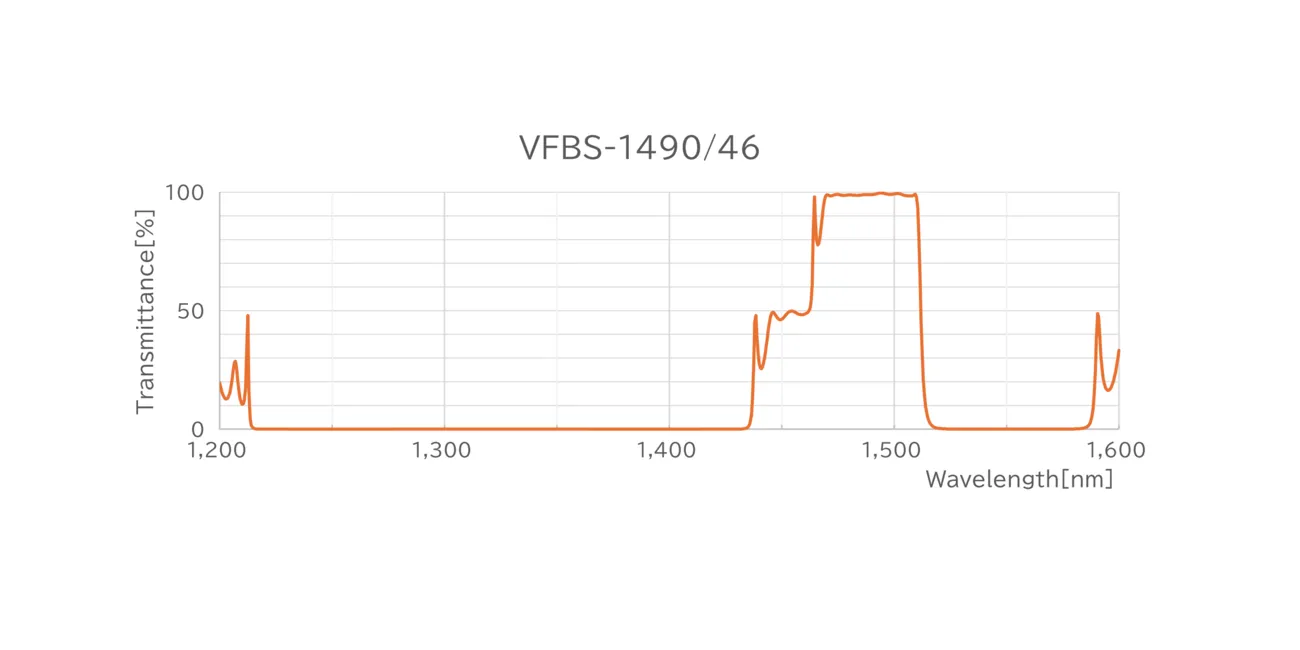

| Band pass filter | VFBS-1490/46 | 0 | 1490 |
|
| Band pass filter | VFBS-1065/0.5 | 0 | 1065 |
|
| Band pass filter | VFCG-B390 | 0 | 390 |
|

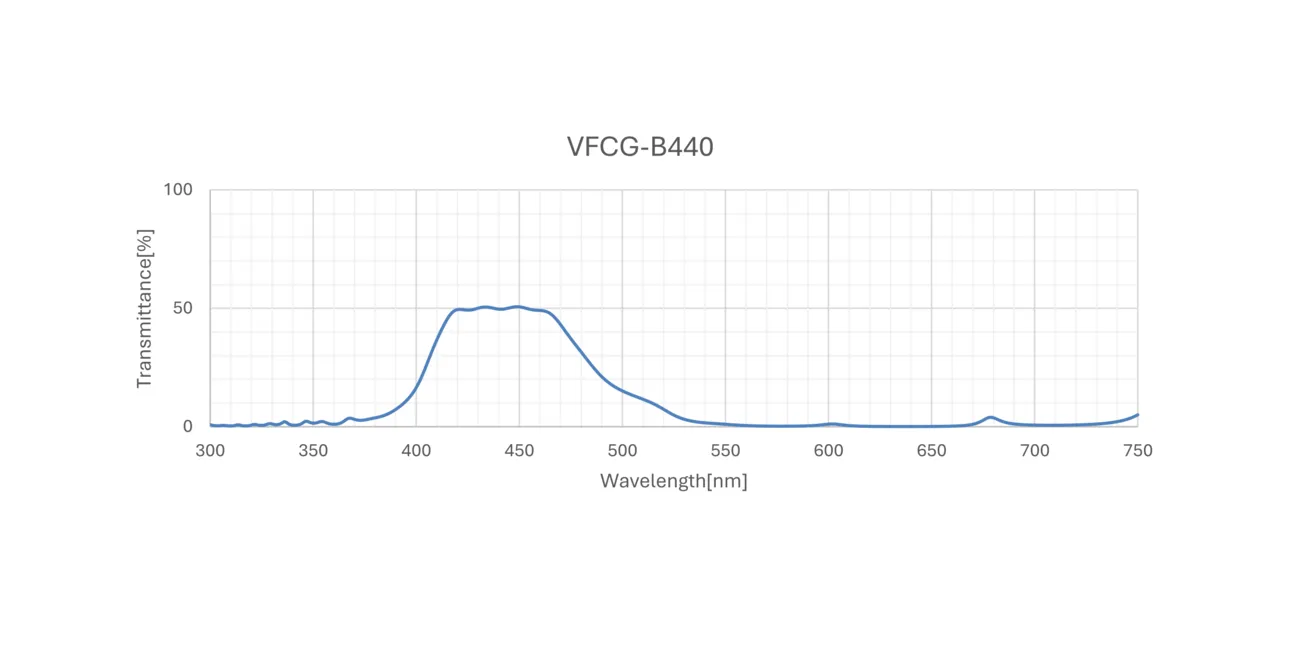

| Band pass filter | VFCG-B440 | 0 | 440 |
|
| Band pass filter | VFBS-810/142 | 0 | 810 |
|
| Band pass filter | VFBS-720/20 | 0 | 720 |
|
| Band pass filter | VFBS-550/100 | 0 | 550 |
|

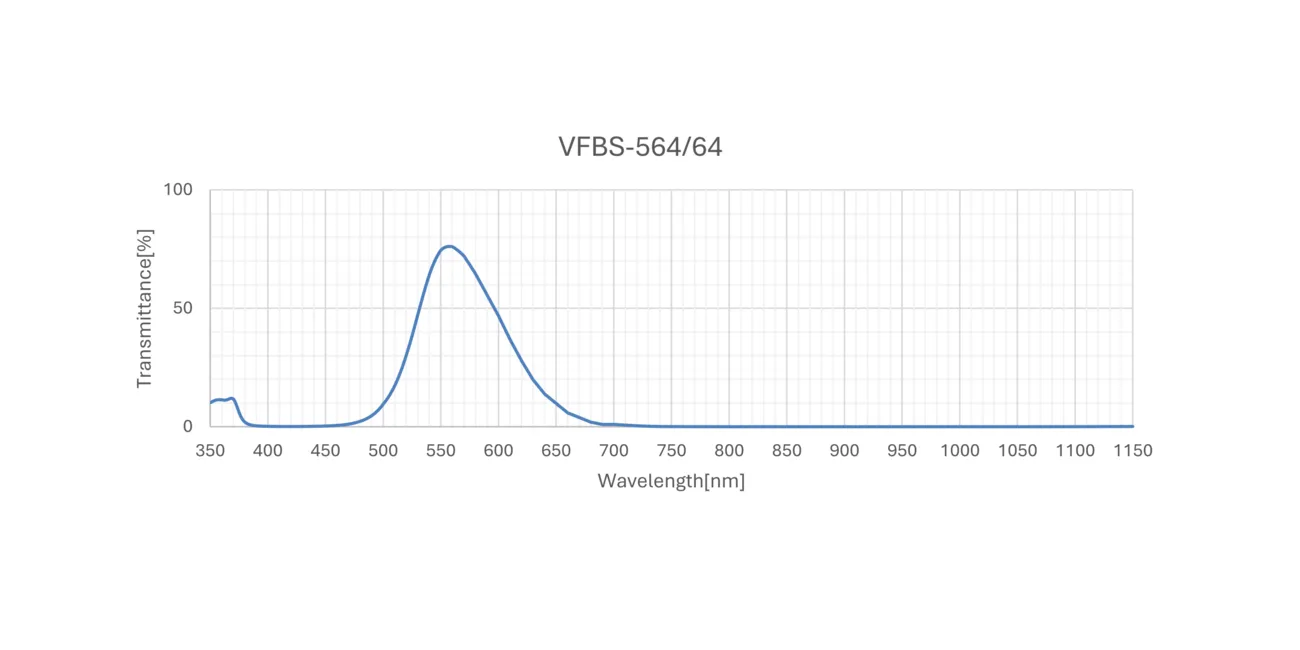

| Band pass filter | VFBS-564/64 | 0 | 580-710 |
|
| Band pass filter | VFBS-620/10 | 0 | 620 |
|

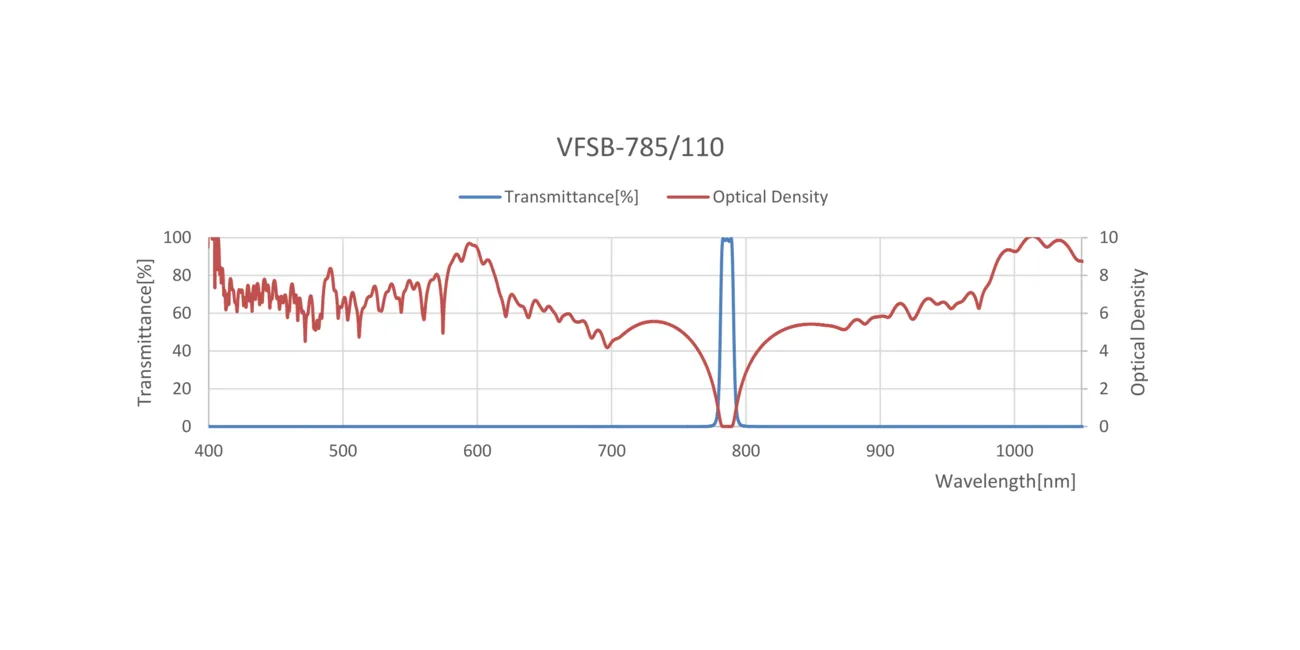

| Band pass filter | VFBS-785/110 | 0 | 785 |
|
| Long pass filter | VFLP-600 | 0 | 630 |
|
| Long pass filter | VFLP-800 | 0 | 850 |
|
| Long pass filter | VFLP-1474.5 | 0 | 1476-1488 |
|
| Long pass filter | VFLP-510 | 0 | 530 |
|
| Long pass filter | VFLP-554.6 | 0 | 560 |
|
| Long pass filter | VFLP-810 | 0 | 820 |
|

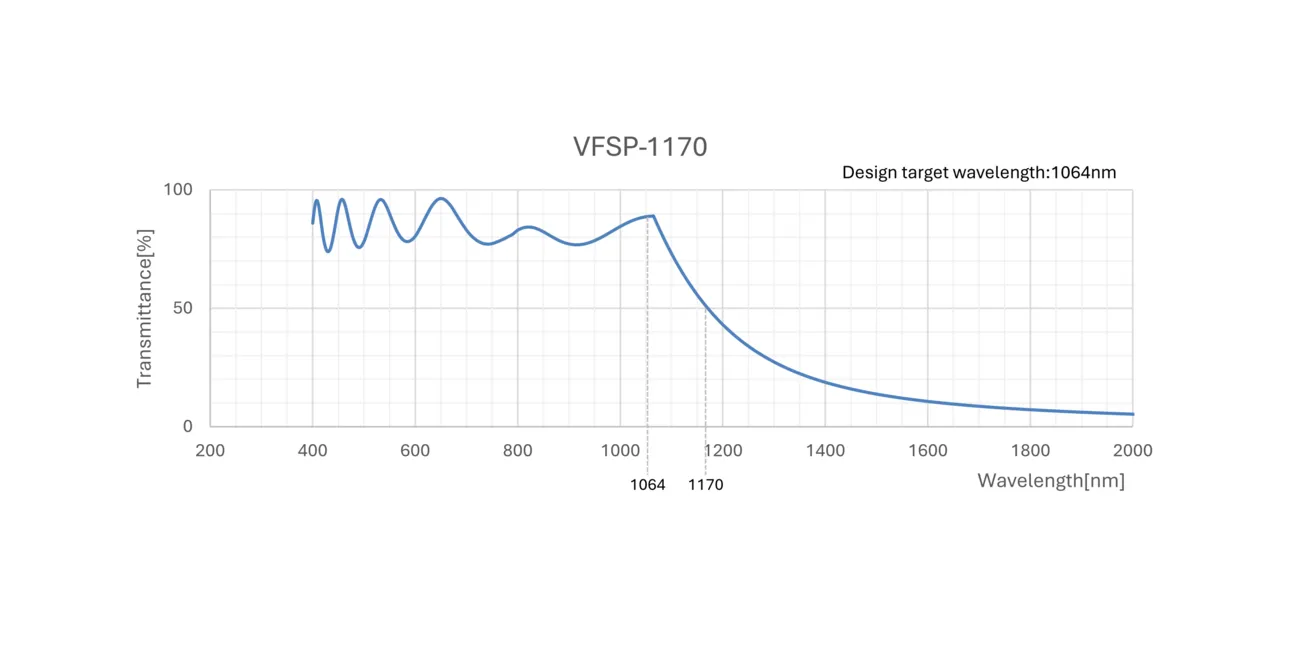

| Short Pass Filter | VFSP-1170 | 0 | 1064 |
|

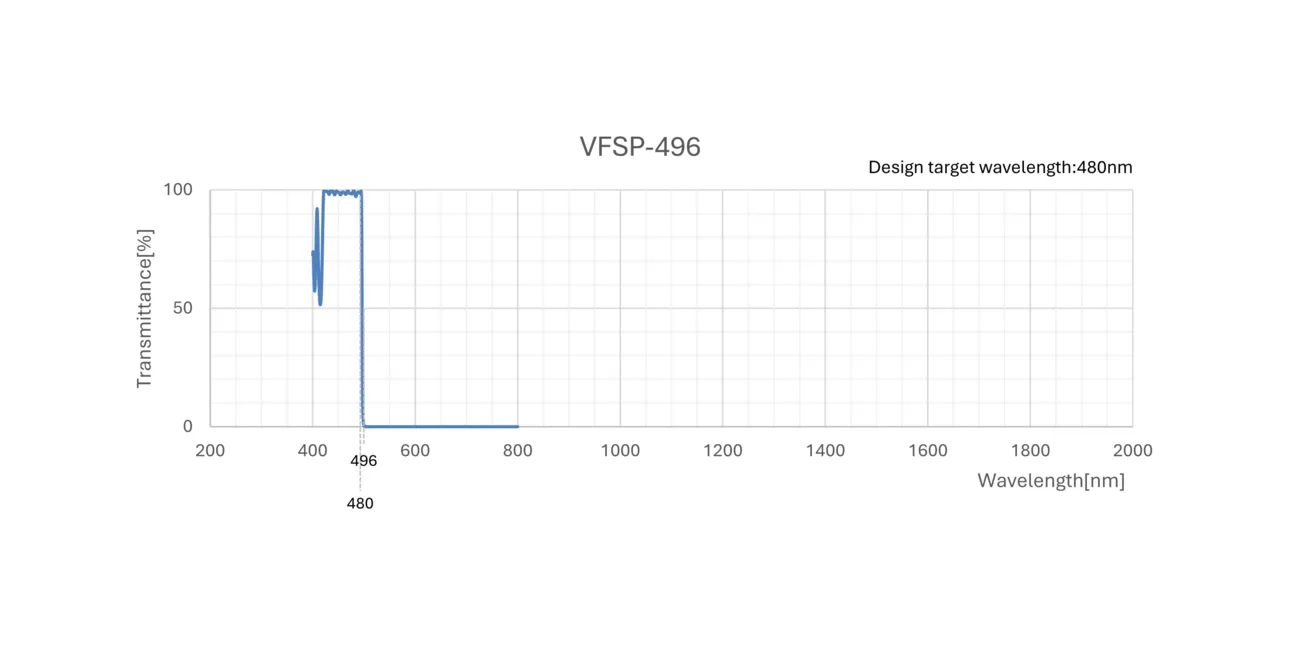

| Short Pass Filter | VFSP-496 | 0 | 480 |
|

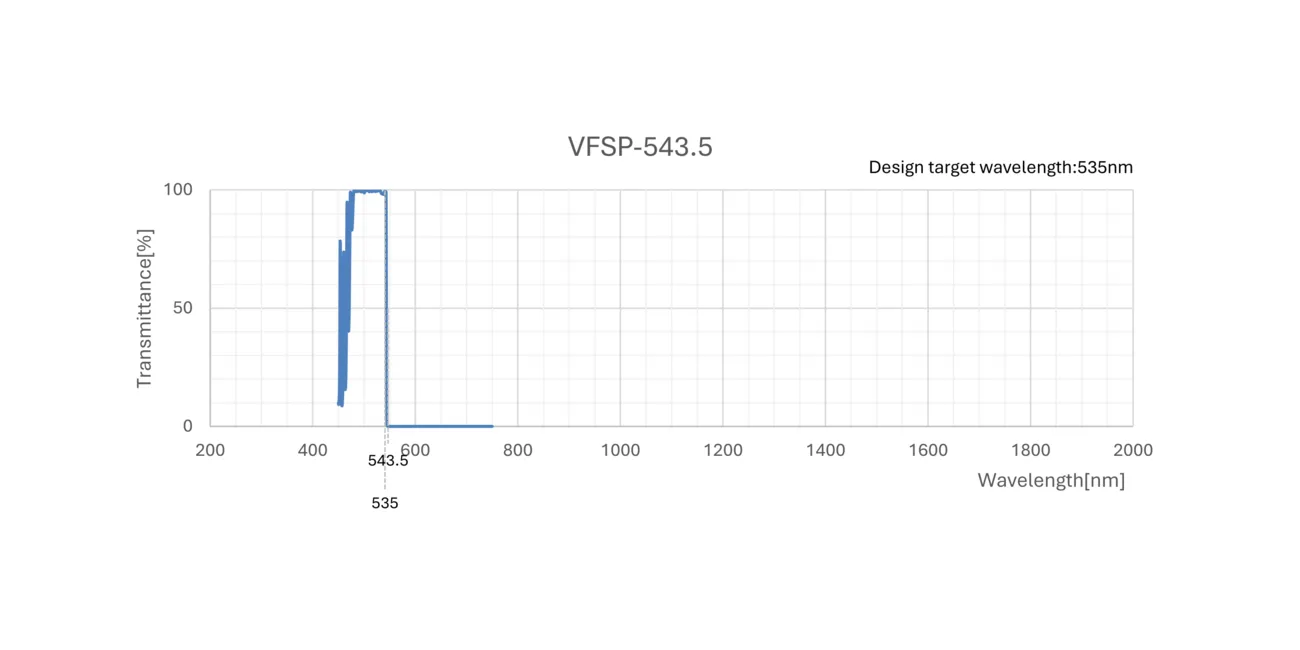

| Short Pass Filter | VFSP-543.5 | 0 | 535 |
|

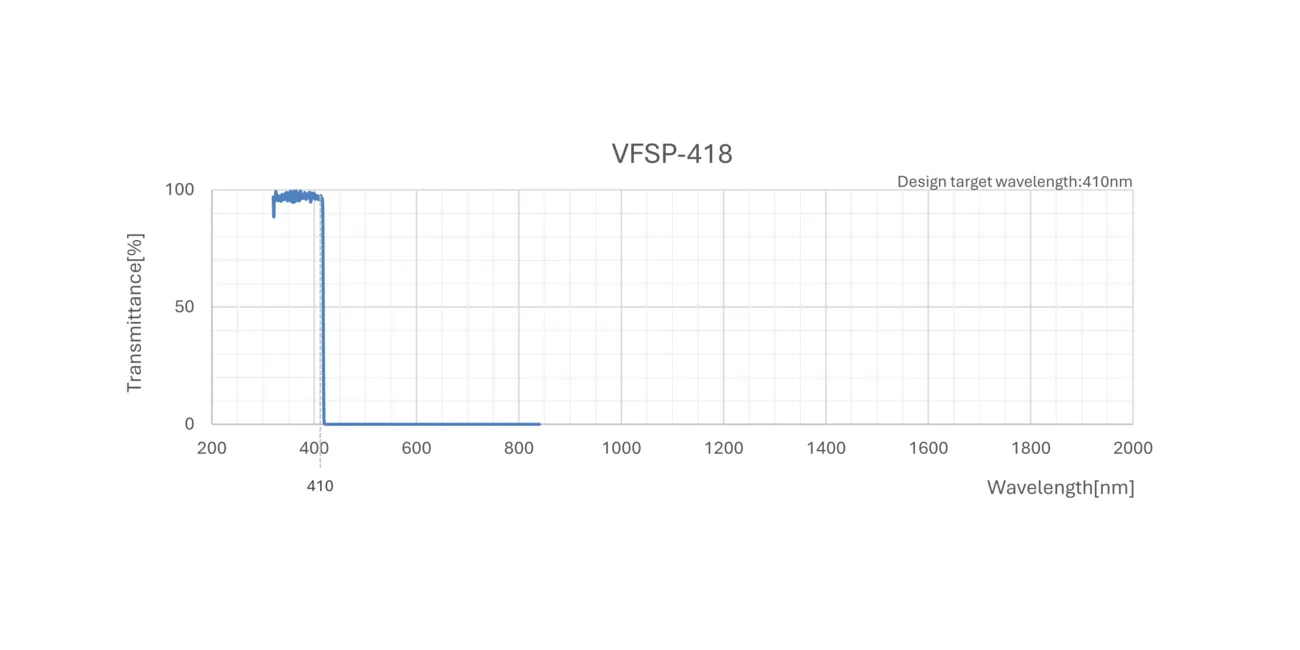

| Short Pass Filter | VFSP-418 | 0 | 410 |
|

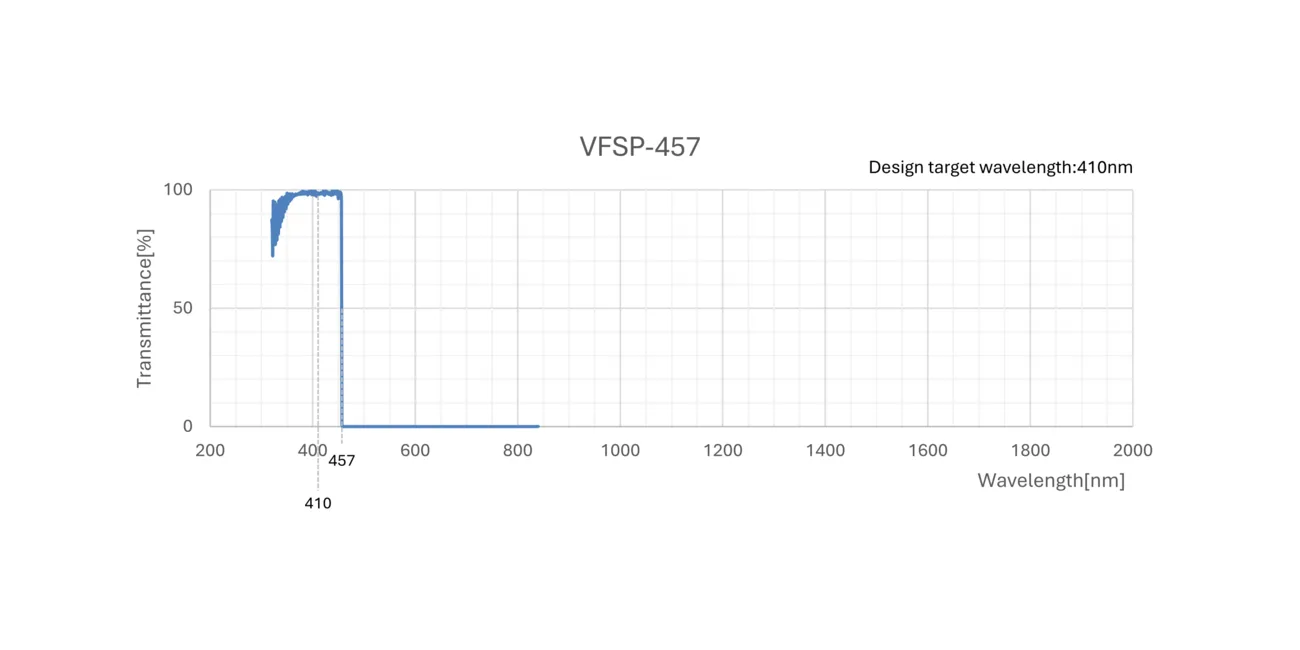

| Short Pass Filter | VFSP-457 | 0 | 410 |
|

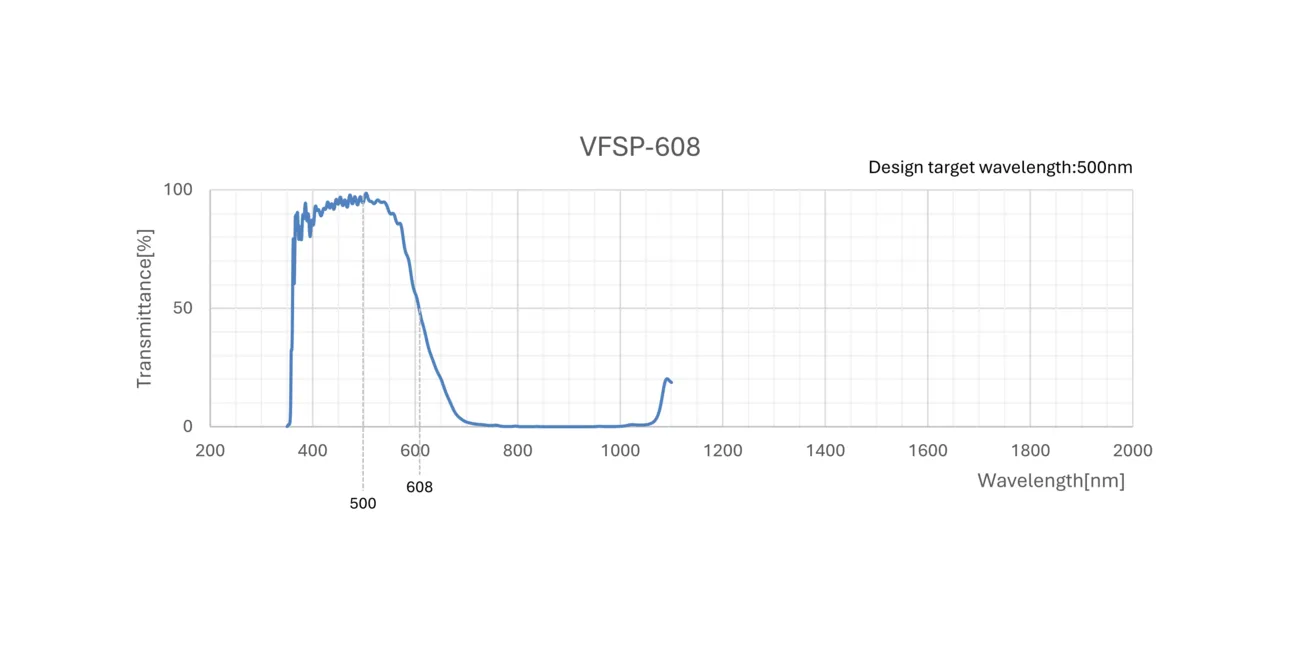

| Short Pass Filter | VFSP-608 | 0 | 500 |
|

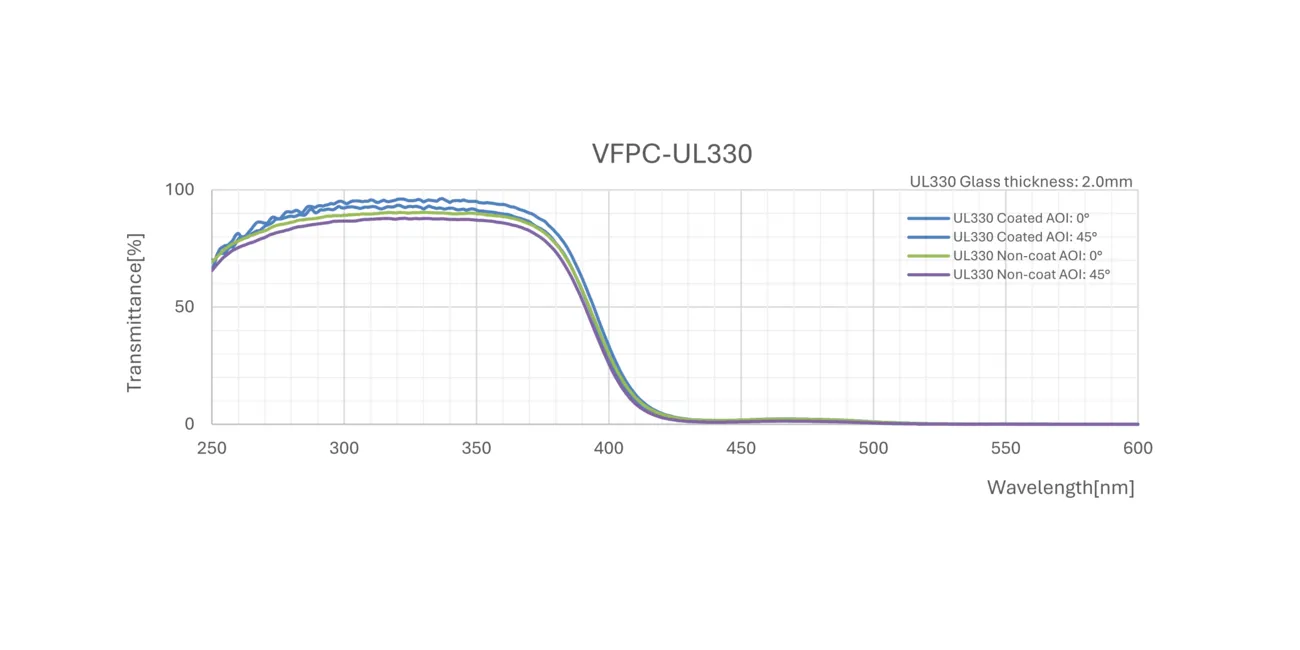

| Color Glass Protective Coating | VFPC-UL330 | 0 | 330 |
|

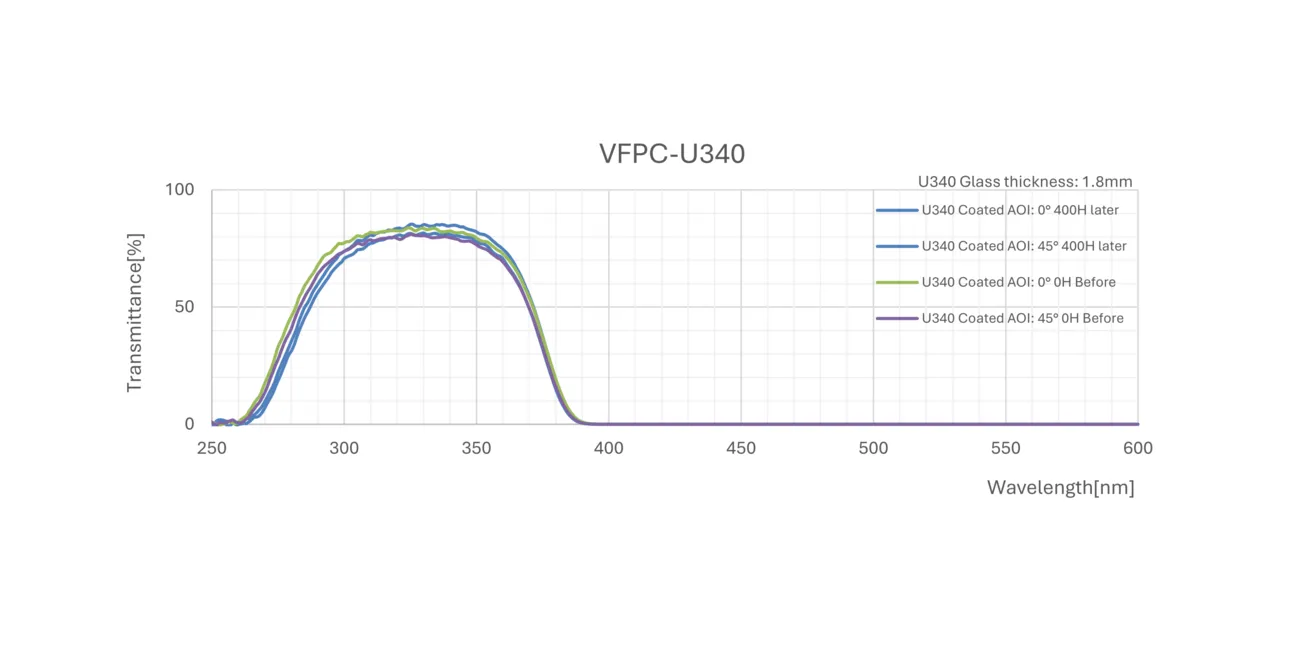

| Color Glass Protective Coating | VFPC-U340 | 0 | 340 |
|
Customize your own filter
Fill in this form and we will get back to you
