Bio & Medical
At the Forefront of Life Sciences & Diagnostics

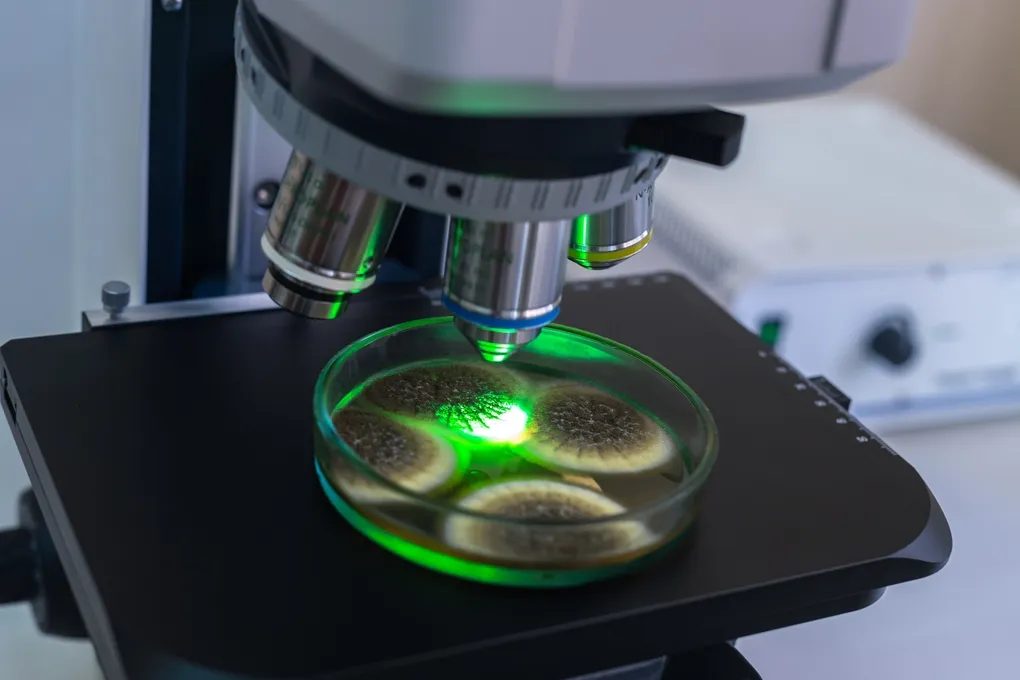

Fluorescence microscopy and blood analysis require the highest possible transmission coupled with deep out-of-band blocking (high OD) to capture faint signals.
Our Solution:
We provide optical solutions that maximize the S/N ratio by eliminating stray light, ensuring the precision and reliability of your diagnostic data.
Bio & Medical
| Filter type | Model | Angel of Incidence |
Design Target Wavelength |
Graph |
|---|---|---|---|---|

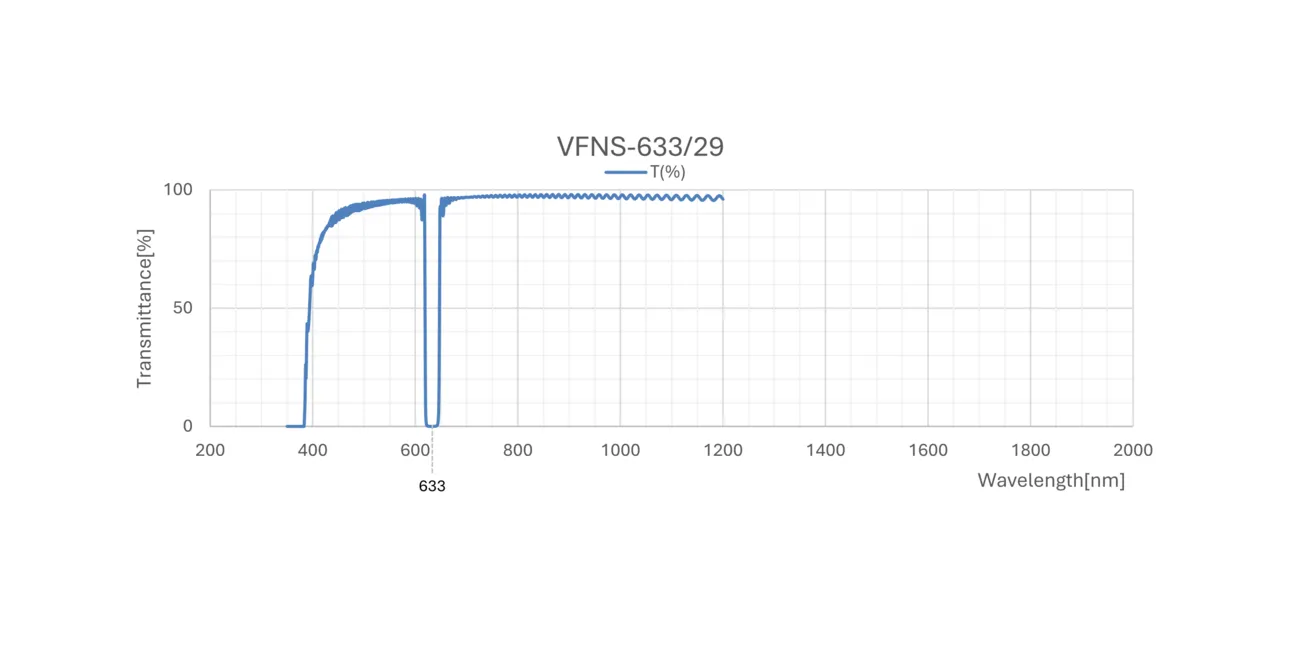

| High Performance Notch filter | VFNS-633/29 | 0 | 633 |
|

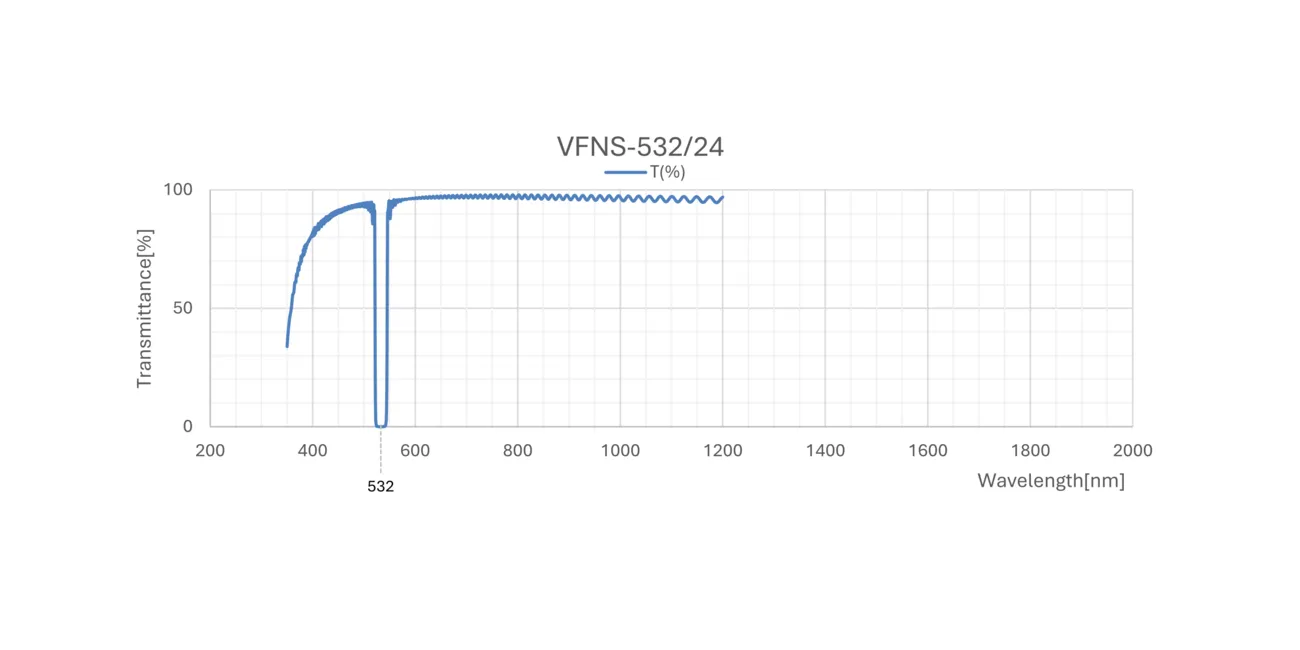

| High Performance Notch filter | VFNS-532/24 | 0 | 532 |
|

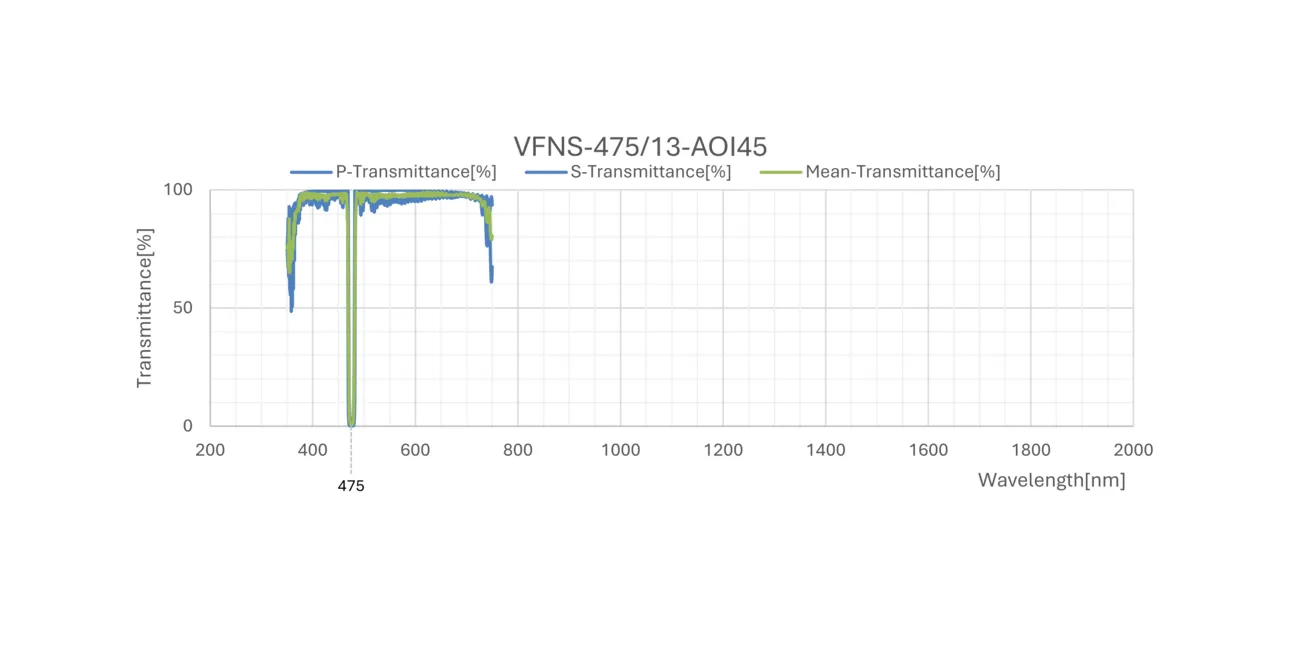

| High Performance Notch filter | VFNS-475/13-AOI45 | 45 | 475 |
|

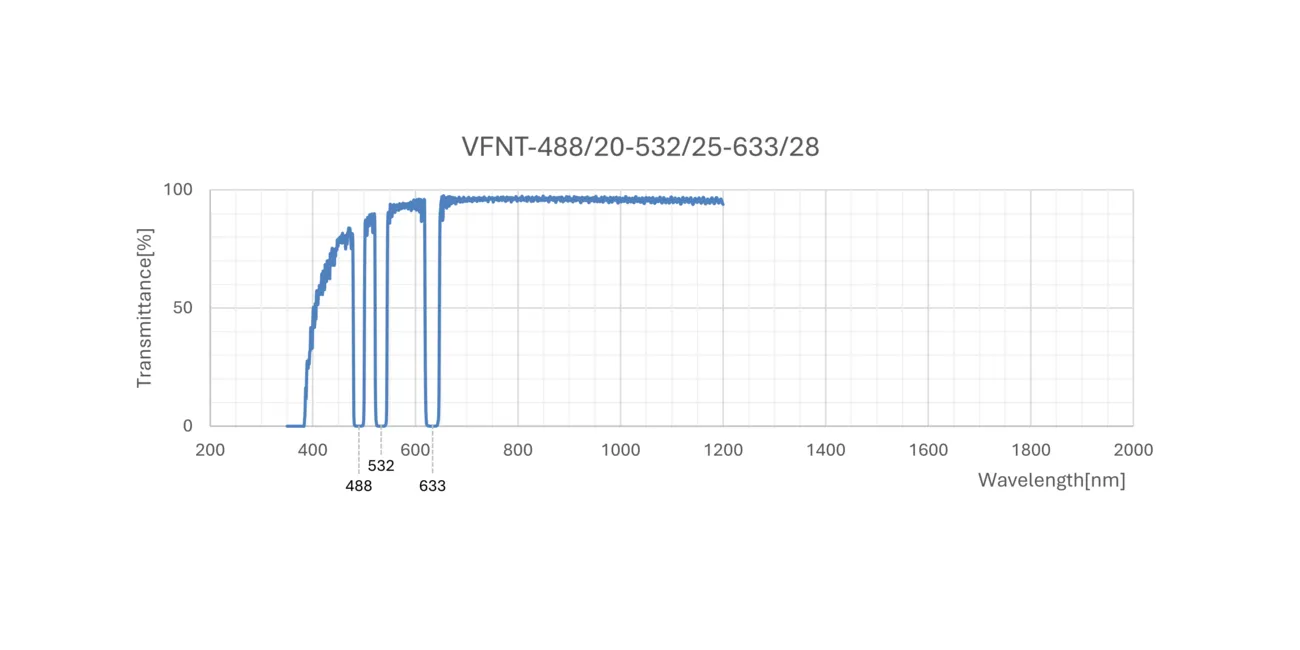

| High Performance Notch filter | VFNT-488/20-532/25-633/28 | 0 | 488,532,633 |
|

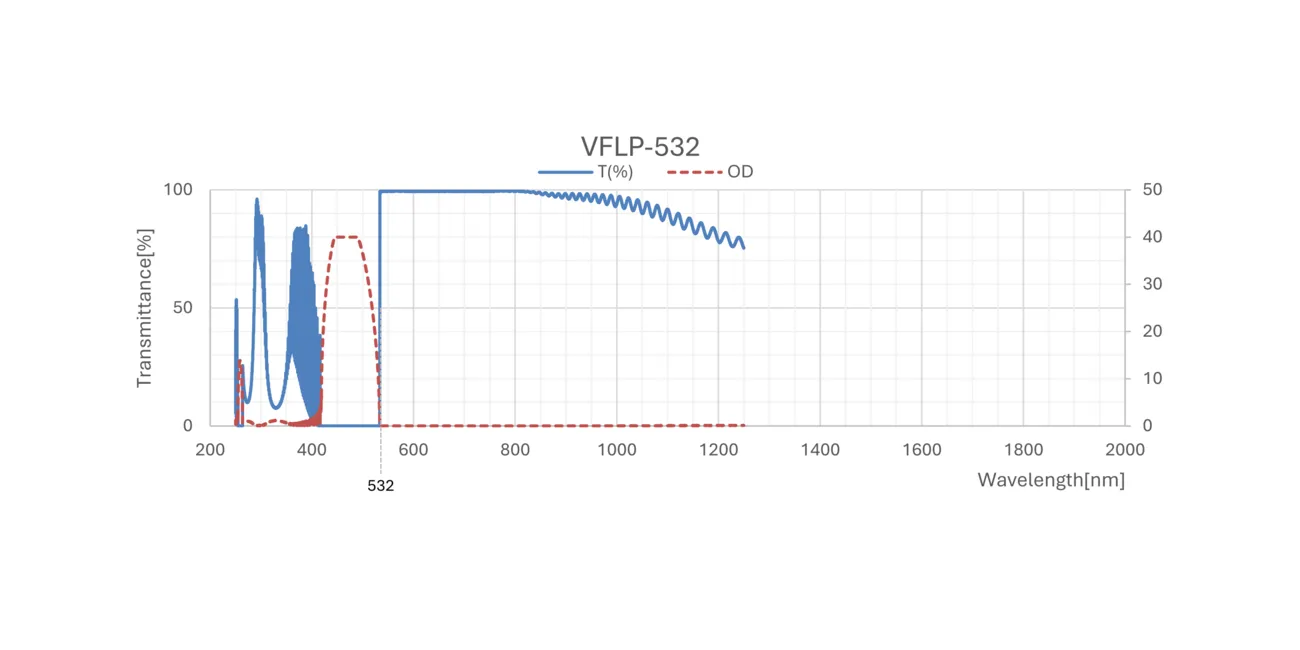

| Raman spectroscopy filter | VFLP-532 | 0 | 532 |
|

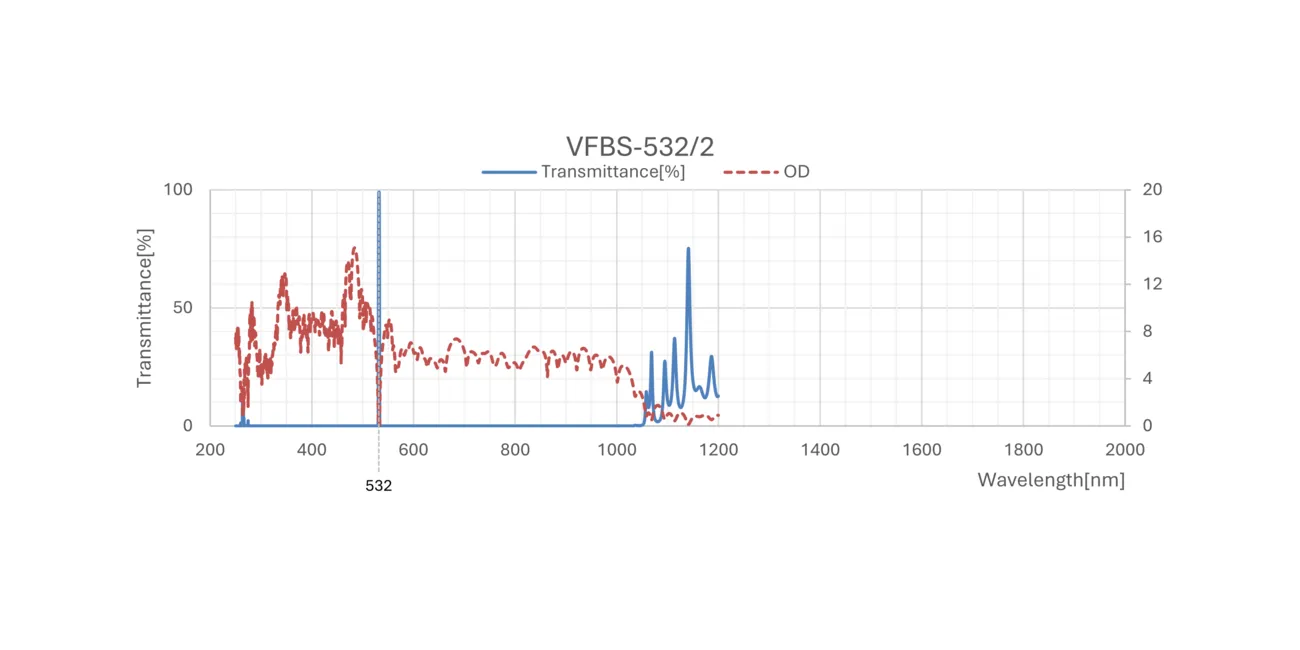

| Raman spectroscopy filter | VFBS-532/2 | 0 | 532 |
|

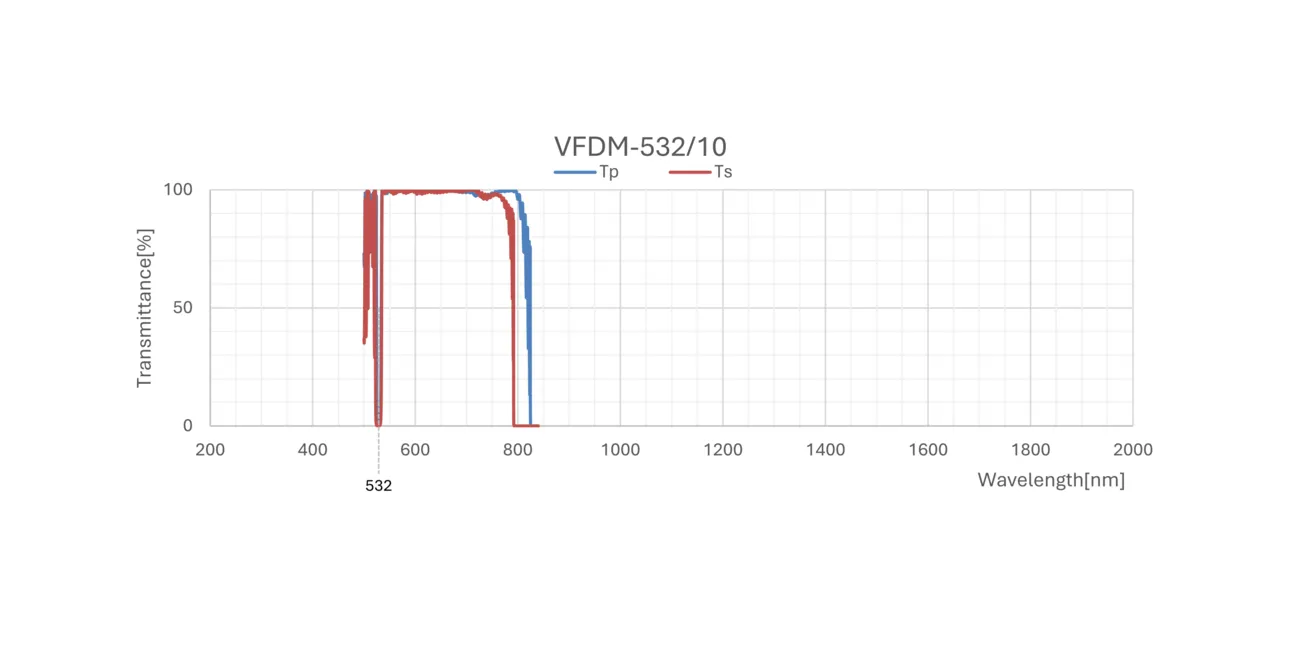

| Raman spectroscopy filter | VFDM-532/10 | 45 | 532 |
|

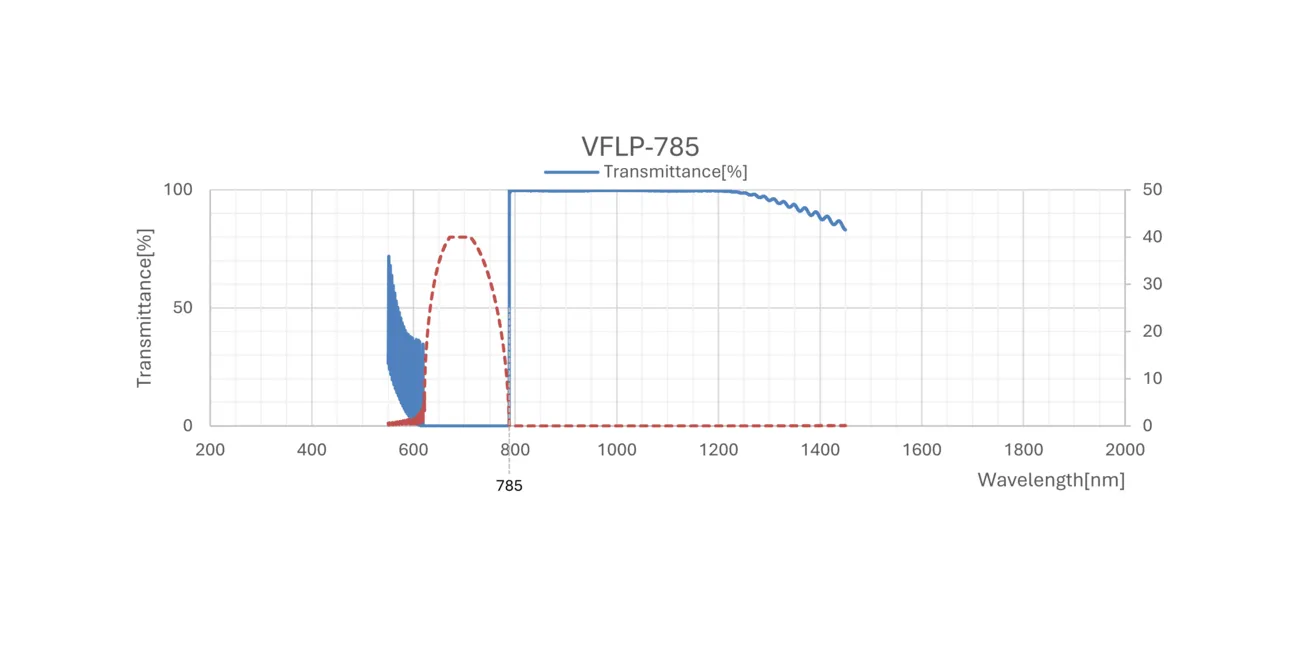

| Raman spectroscopy filter | VFLP-785 | 0 | 785 |
|

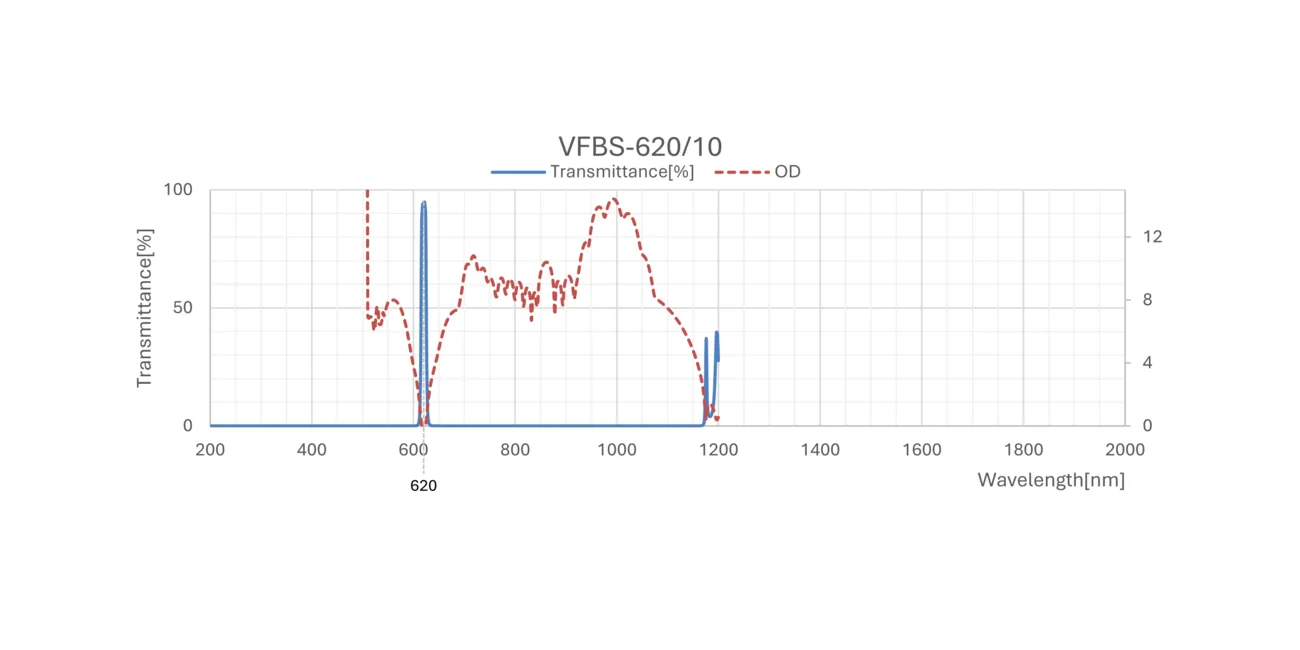

| Fluorescence analysis filter | VFBS-620/10 | 0 | 620 |
|

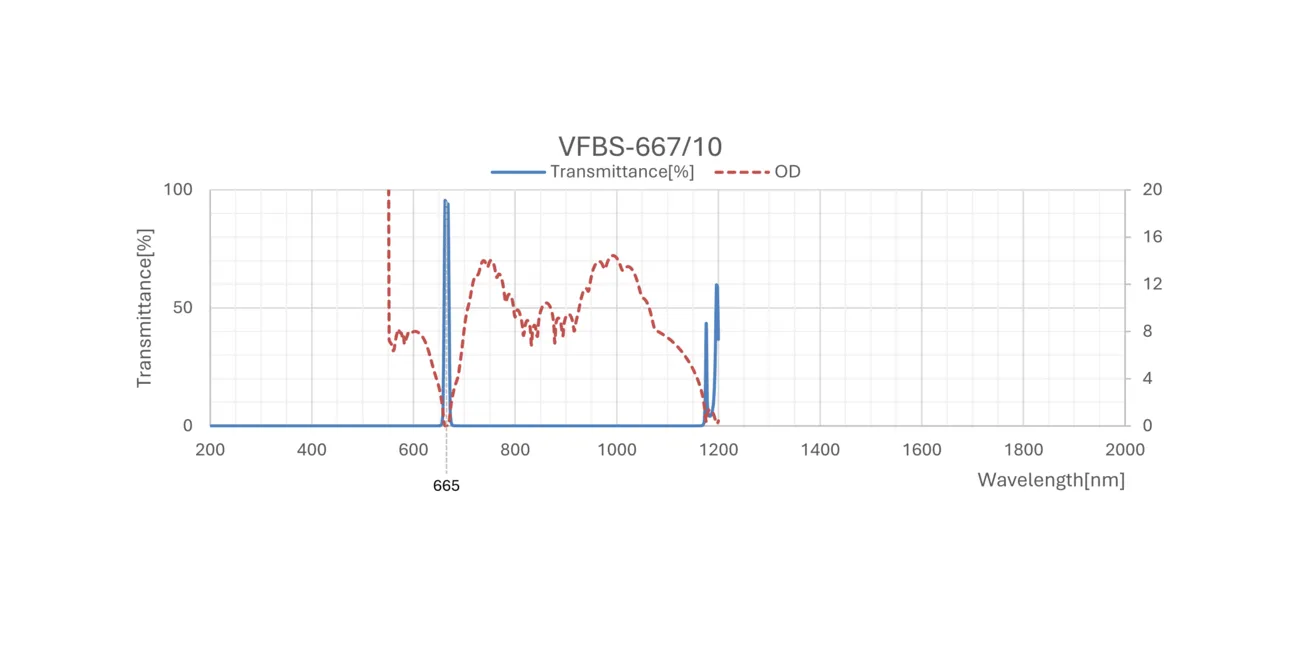

| Fluorescence analysis filter | VFBS-667/10 | 0 | 667 |
|

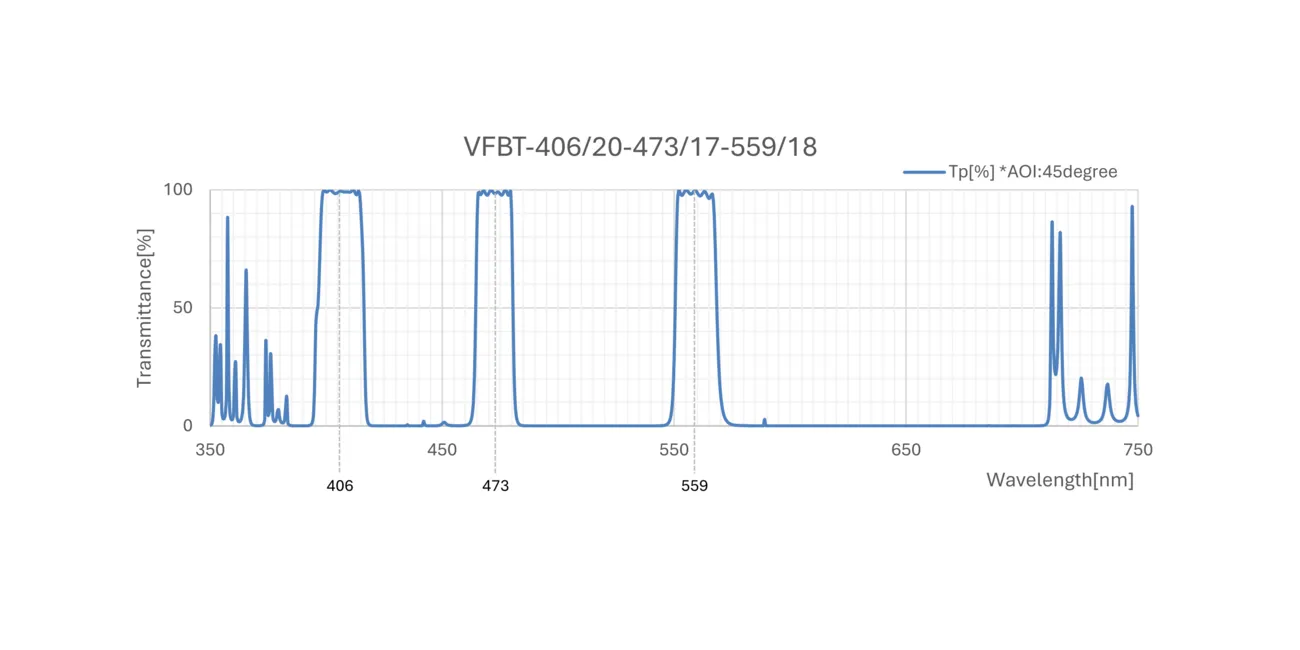

| Multi-Band pass filter | VFBT-406/20-473/17-559/18 | 0 | 405,473,559 |
|

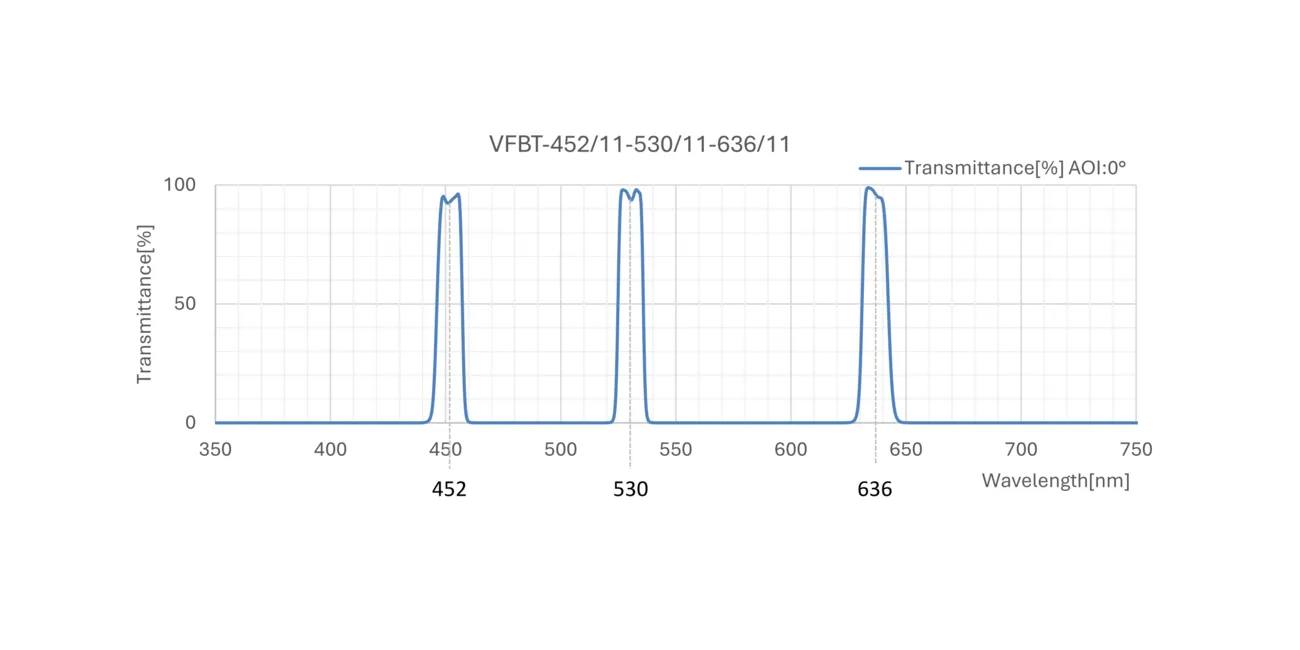

| Multi-Band pass filter | VFBT-452/11-530/11-635/11 | 0 | 450,535,638 |
|

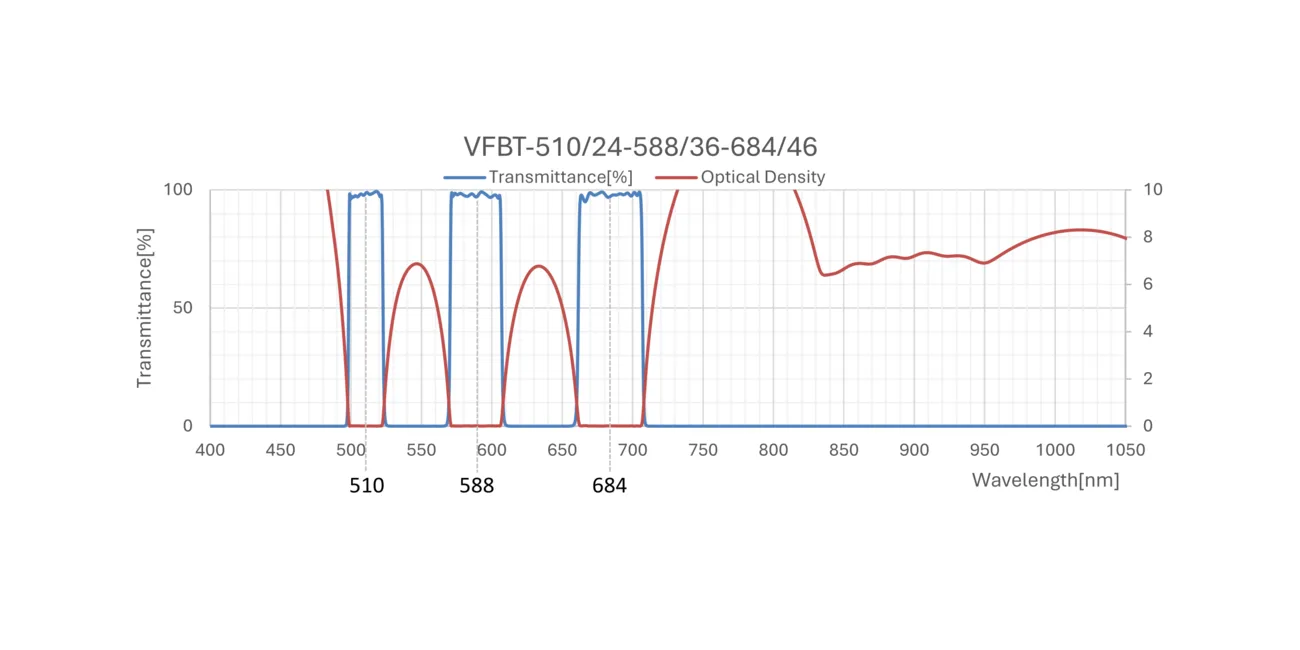

| Multi-Band pass filter | VFBT-510/24-588/36-684/46 | 0 | 510,590,680 |
|

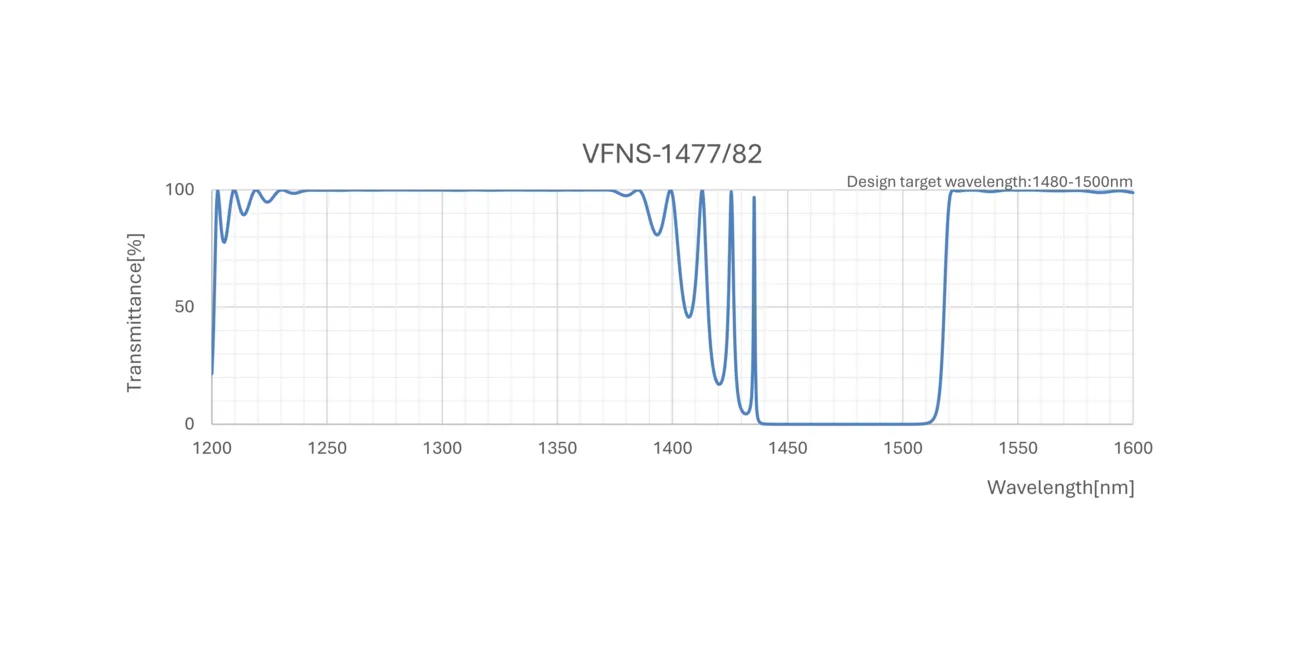

| Notch filter | VFNS-1477/82 | 0 | 1480-1500 |
|

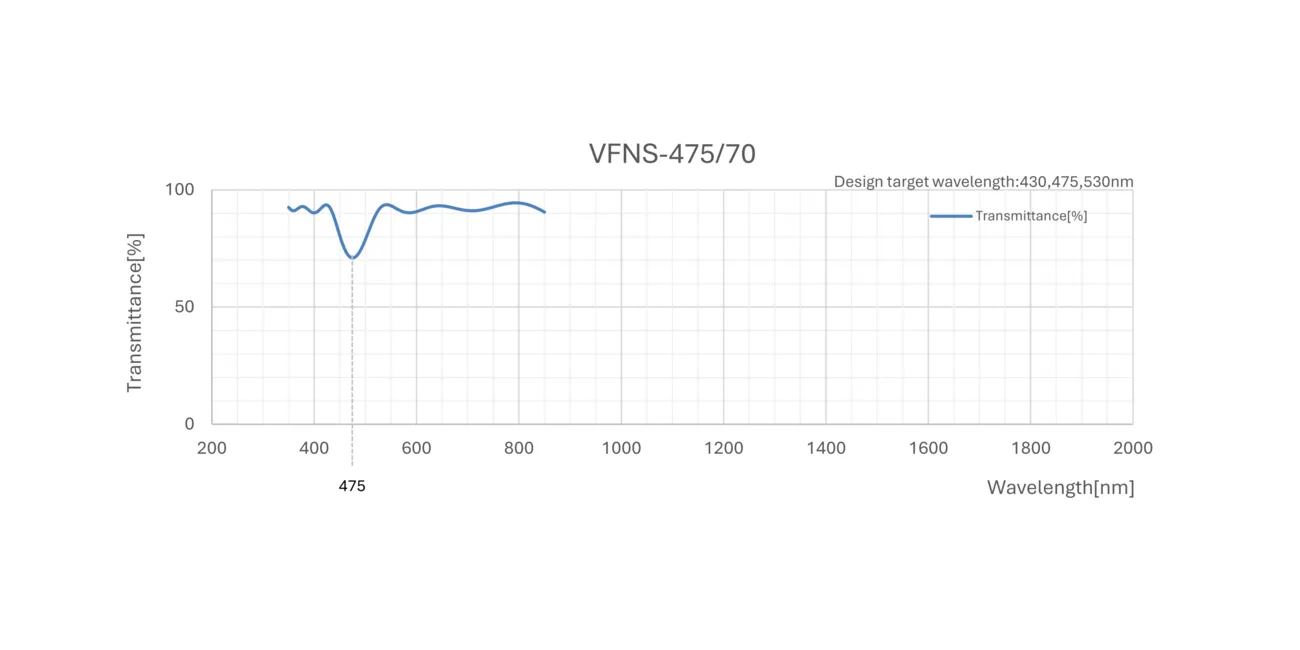

| Notch filter | VFNS-475/70 | 0 | 475 |
|

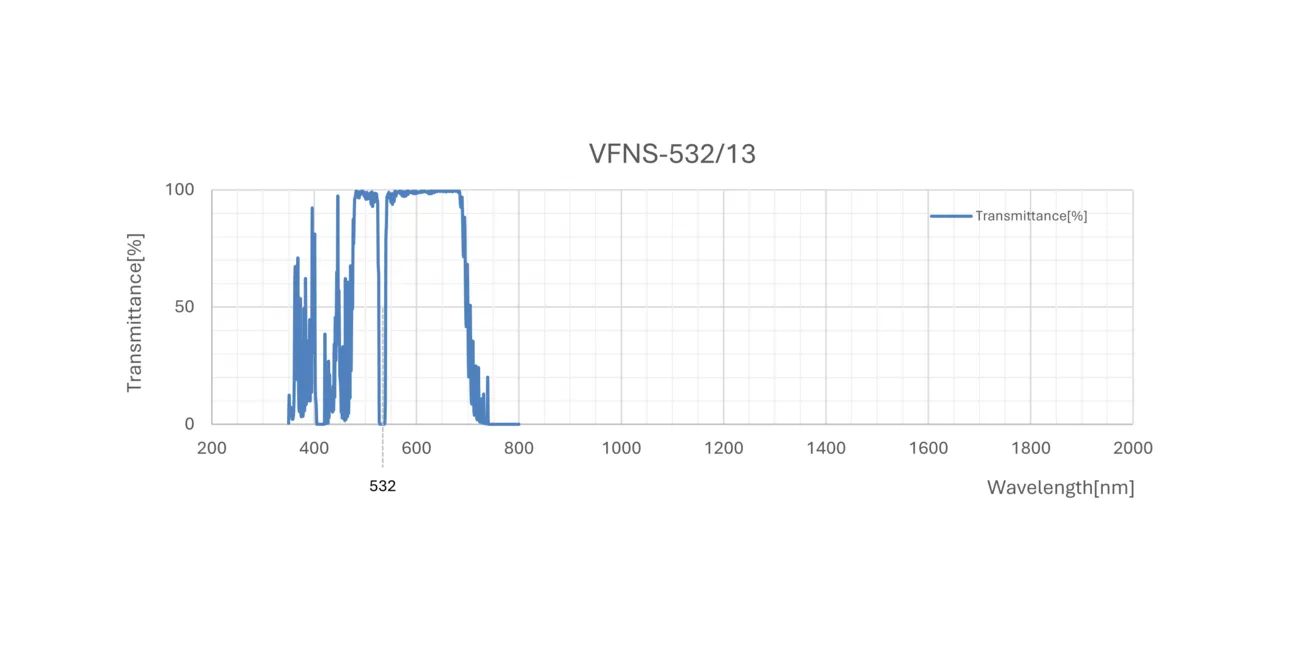

| Notch filter | VFNS-532/13 | 0 | 532 |
|

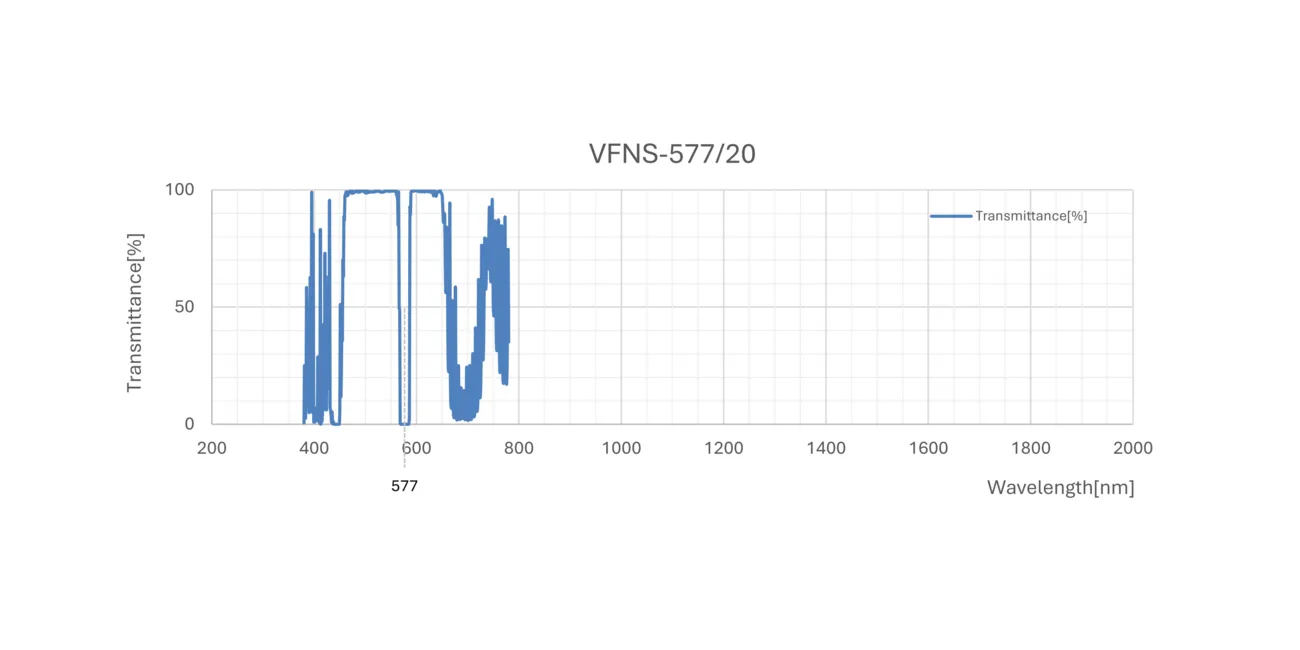

| Notch filter | VFNS-577/20 | 0 | 577 |
|

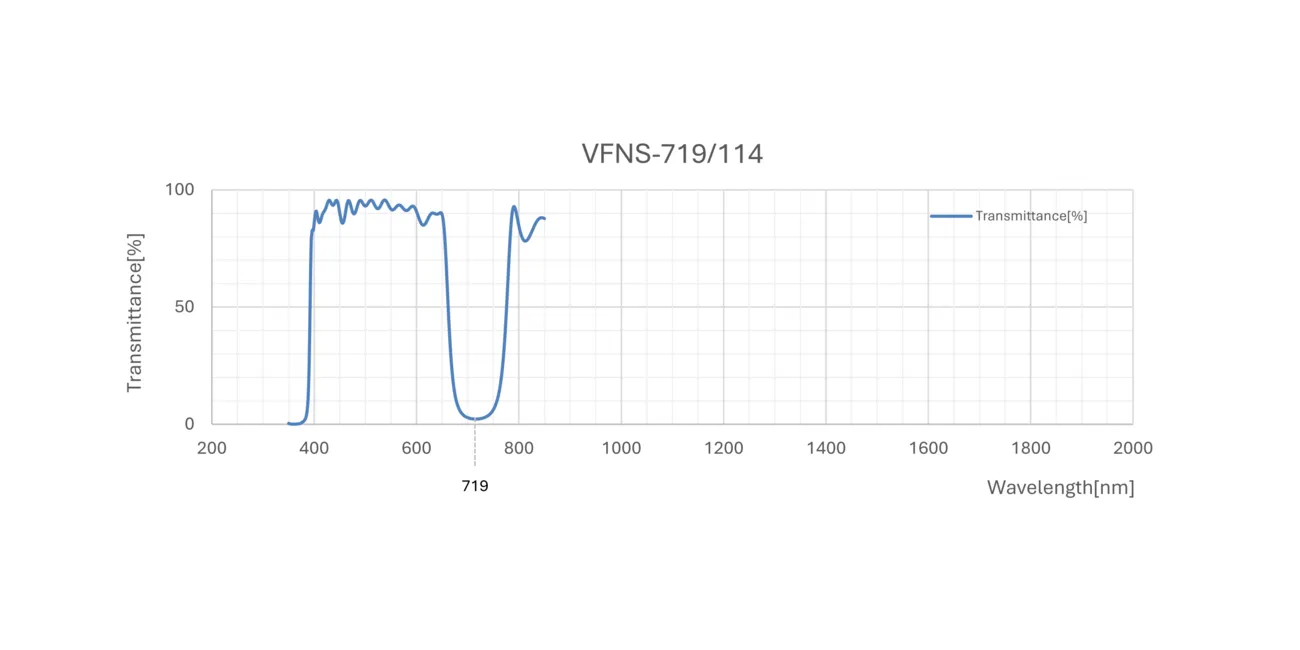

| Notch filter | VFNS-719/114 | 0 | 685-745 |
|

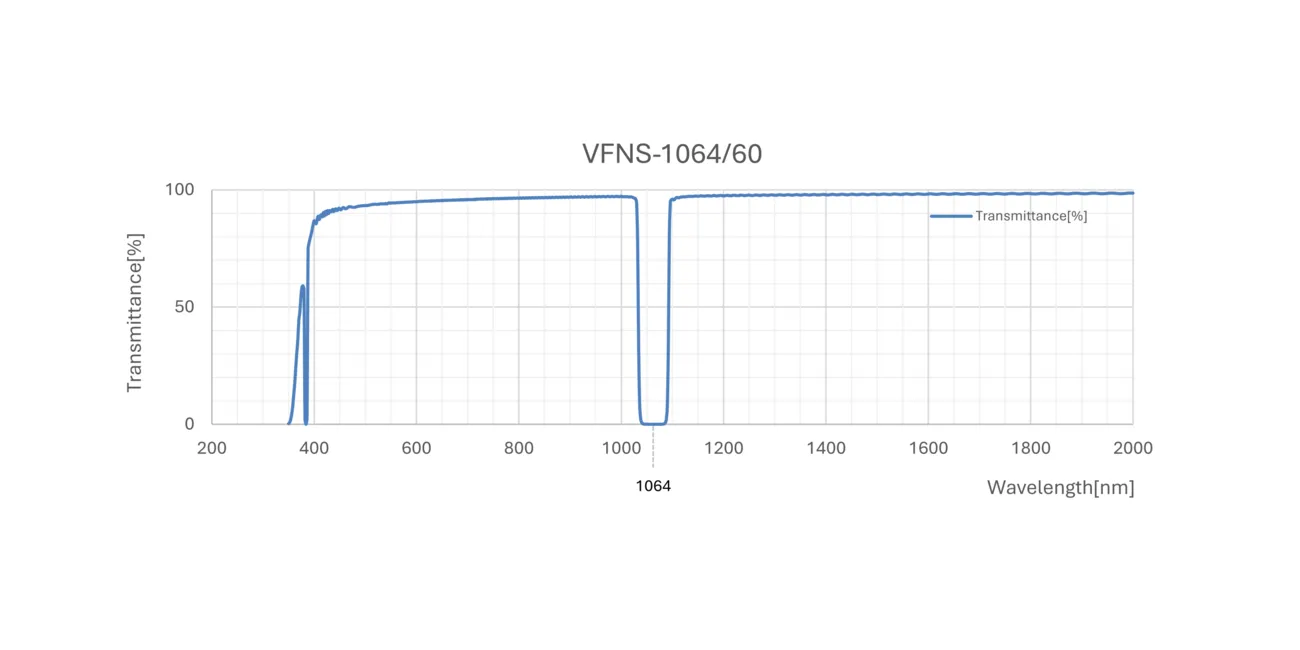

| Notch filter | VFNS-1064/60 | 0 | 1064 |
|
Customize your own filter
Fill in this form and we will get back to you
